Heavy Duty Sloting Machine
2 Products availableMilling Machine
2 Products availablePlano Milling Machine
2 Products availablePower Press
2 Products availableVertical Turning Lathe (VTL)
2 Products availableOur offered Product range includes CMS Crossing Drilling Machine, Gang Drilling Machine, Geared Radial Drill Machine, All Geared Radial Drilling Machine and Column Drilling Machine.
We are one of the leading Manufacturers, Exporters and Suppliers of CMS Crossing Drilling Machine. Using ultra-modern technology, our experts specifically design and produce advanced CMS Crossing Drilling Machine. Our excellent quality CMS Crossing Drilling Machine is rigorously checked on the parameters of quality and functionality at our end before supplying. Clients can avail from us CMS Crossing Drilling Machine which is efficient in drilling application.
Suitable for successive operations, the Gang Drilling Machine manufactured by us is highly demanded for mass production of same component by various industries. The Gang Style Drill Press consists of a single table with multiple work heads positioned over it. Various parts are fitted in the Gang Drilling Machines for tapping, drilling and chamfering operations. Why Our Gang Drilling Machine?
Technical Specifications
| MODEL | NAD40A | NAD40B | NAD50A | NAD50B | NAD50C | NAD65B | NAD75 | |
|---|---|---|---|---|---|---|---|---|
| Drilling Capacity in solid mild street | 40 mm | 40mm | 50mm | 50 mm | 50 mm | 65 mm | 75 mm | |
| Drilling Capacity in cast iron | 50 mm | 50 mm | 60 mm | 60 mm | 60 mm | 75 mm | 85 mm | |
| Dia of column | A | 0.23 | 255 | 255 | 310 | 310 | 355 | 405 |
| Drilling Radius minimum | B | 550 | 375 | 525 | 450 | 425 | 650 | 675 |
| Drilling Radius maximum | C | 1050 | 950 | 1125 | 1100 | 1325 | 1600 | 1950 |
| Machine height from floor | D | 2420 | 2420 | 2760 | 2760 | 2760 | 3170 | 3320 |
| Distance from spindle nose to top of the base plats minimum Spindle In downward position | E | 50 | 100 | 75 | 100 | 100 | 100 | 100 |
| Distance from spindle nose to top of the base plate minimum Spindle In upward position | F | 1000 | 1150 | 1200 | 1300 | 1300 | 1600 | 1750 |
| Drilling Depth | G | 180 | 180 | 225 | 225 | 225 | 325 | 325 |
| Working surface of Base plate | 885 X 545 | 975 655 | 1150x655 | 1460x645 | 1735x940 | |||
| Dimension of Base | RxSxT | 1470x705 X180 | 1645x835 x2W | 1755x635 x200 | 2370x1015 x 210 | 2640x1110 K 210 | ||
| Effective area of box Table | LxKxM | 330|3330 | 55 | 600x450 x450 | 600 x 450 X450 | 600 x450x450 | ||
| No. of spindle speeds & Range (RPM.xSteps) | 45 - 660 x 6 Steps | 40 - 790 x 9 Steps | 25-930 12 Steps | 20-740 12 Steps | ||||
| No. of spindle feeds of Range (Per Rev. xsteps) | 0.095-0215 3 Steps | 0.080-0.180 3 Steps | 0.10-1.25 6 Steps | |||||
| Taper Spindle nose socket | MT4 | MT4 | MT5 | MT5 | MT5 | MT5 | MT6 | |
| Main Motor | 2 HP | 2 HP | 3 HP | 3 HP | 3 HP | 5 HP | 7.5 HP | |
| Elevating Motor | 1HP | 1HP | 2 HP | 2 HP | 2 HP | 3 HP | 5 HP | |
| Total weight of Machine (approx.) Kgs. | 1700 Kg | 2000 Kg | 2500 Kg. | 3000 Kg. | 3200 Kg. | 4800 Kg. | 6500 Kg. |

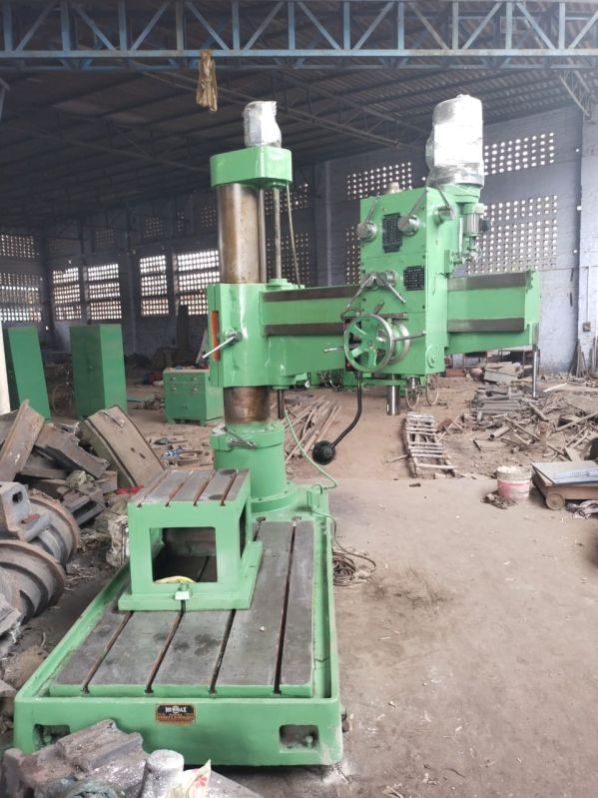

We are well-reputed as one of the major All Geared Radial Drilling Machine Manufacturers in India. The unmatched quality and unsurpassable performance has attracted various national as well as international clients to place repeated orders for the All Geared Radial Drilling Machines. Moreover, our All Geared Radial Drilling Machines are available with all the advanced features ensuring easy operation. Salient Features :
|
|
Technical Specifications
| Drill Head | SDM-40B | SDM-40C | SDM-50B | SDM-50C | SDM-65B | SDM-75B | SDM-85B | SDM-100B |
| Drilling Capacity (In steel/ cast iron) | 40/50 | 40/50 | 50/60 | 50/60 | 65/75 | 75/85 | 85/95 | 100/110 |
| Drilling Depth | 180 | 180 | 225 | 250 | 325 | 355 | 400 | 400 |
| Taper Spindle Nose Socket | MT-4 | MT-4 | MT-5 | MT-5 | MT-5 | MT-6 | MT-6 | MT-6 |
| No. of Spindle Speeds/ Range (RPM) | 6(55-665) | 12(56-1000) | 9(45-750) | 12(45-1000) | 12(18-810) | 12(18-810) | 12(16-1250) | 12(12-1250) |
| No’s of Spindle Feeds/ Range (mm/rev.) | 3(0.1-0.2) | 3(0.1-0.2) | 3(0.1-0.2) | 6(0.125-1.25) | 6(0.125-1.25) | 6(0.125-1.25) | 6(.08-1.0) | 6(.08-1.0) |
| Drill Power | 1.5 kw | 2.2 kw | 2.2 kw | 3.7 kw | 3.7 kw | 5.5 kw | 7.5 kw | 10 kw |
| CAPACITY | ||||||||
| Drilling Radius Max. | 1050 | 1050 | 1100 | 1300 | 1700 | 1900 | 2200 | 2500 |
| Drilling Radius Min. | 375 | 375 | 450 | 450 | 500 | 600 | 650 | 775 |
| Drilling Head Traverse | 675 | 675 | 650 | 850 | 1200 | 1300 | 1550 | 1725 |
| Distance Base Plate to Spindle Max. | 1000 | 1000 | 1300 | 1300 | 1500 | 1750 | 1800 | 2000 |
| Distance Base Plate to Spindle Min. | 225 | 225 | 225 | 325 | 300 | 400 | 550 | 550 |
| Diameter of Column Sleeve | 255 | 255 | 310 | 310 | 355 | 405 | 450 | 550 |
| Working Surface of Base Plate | 900*680 | 900*680 | 920*830 | 1120*830 | 1500*1020 | 1850*1160 | 2130*1300 | 2450*1300 |
| DIMENSIONS OF BASE PLATE | ||||||||
| Length*Width*Height | 1480*700*200 | 1480*700*200 | 1585*850*200 | 1800*850*200 | 2265*1040*225 | 2650*1180*225 | 3150*1300*250 | 3450*1300*250 |
| Arm Elevator Motor | 0.75 kw | 0.75 kw | 1.5 kw | 1.5 kw | 2.2 kw | 3.7 kw | 3.7 kw | 7.5 kw |
| Standard Box Table | 400*350*350 | 550*420*420 | 550*420*420 | 550*420*420 | 600*500*500 | 600*500*500 | 1000*750*500 | 1000*750*500 |
| Approx. Weight of Machine | 1700 Kg. | 1850 kg. | 3000 kg | 3500 kg | 4800 kg | 6500 kg | 10,000 kg | 13,500 kg |
Column Drilling Machine manufactured by us is the right choice for modern-day production needs. Easy to operate and control, the Column Drilling Machines are designed to handle every type of drilling operation with ease. Available with a set of standard as well as optional accessories, the Column Drilling Machine is offered at market leading rates. Why Our Column Drilling Machine?
Standard Accessories :
Optional Accessories :
Base
| Overall Size of The Base | 1170 x 770 mm |
|---|---|
| No. of T - Slots | 3 Nos. / 19.2 mm |
| Max. Distance Between Spindle And Base | 1100 mm 1200 mm |
| Space Occupied L x B x H (Approx.) | 160 x 850 x 300 mm |
| Net Weight (Approx.) | 2350 Kgs. 2700 Kgs. |
| Gross Weight | 2700 Kgs. 3100Kgs |
Table
| Working Surface of The Table | 500 x 1000 mm |
|---|---|
| Longitudinal Movement of The Table (Mannul) | 500 mm |
| Cross Movement Of The Table (Manual) | 300 mm |
| No. of T - Slots / Size(Width) | 3 Nos. / 18 mm |
Specifications
| Drill Head | WCD - 40 | WCD - 50 |
|---|---|---|
| Drilling Capacity In Steel | 40 mm | 50 mm |
| Drilling Capacity In C.I. Casting | 50 mm | 60 mm |
| Taper In Spindle | MT - 4 | MT - 5 |
| Spindle Traverse | 200 mm | 250 mm |
| Vertica Adjustment Of Spindle Head | 450 mm | 500 mm |
| Distance Between Spindle And Column | 400 mm | 400 mm |
| Number of Spindle Speeds And Range | 12(56 -1000RPM) | 12(45 - 1000 RPM) |
| Number of Spindle Speeds And Range | 3(0.1 - 0.3 mm /rev.) | 6(.12 - 25 mm / rev.) |
| Power of Main Motor | 3H.P. | 5H.P. |
| Power of Elevating Motor | 2H.P. | 2H.P. |
| Motor Suitable For Coolant | 0.125 H.P. | 0.125 H.P. |
Technical Specifications
| Drilling Capacity | 40 mm | 50 mm | 60 mm |
|---|---|---|---|
| Spindle Nose | MT-4 | MT-4 | MT-5 |
| Spindle RPM | 85-550 | 60-650 | 60-650 |
| Drilling Radius Min / Max | 300 / 850 | 325 / 1050 | 350 / 1200 |
| Vertical Travel of Arm | 900 | 1100 | 1250 |
| Main / Elevating Motor | 2 HP & 1 HP | 3 HP & 1 HP | 5 HP & 2 HP |
We are listed amidst the dependable Drill Machine Suppliers in India. The materials used in the manufacturing of the Semi Geared Radial Drilling Machine ensure high durability, tensile strength and resistivity to adverse conditions. Additionally, our Semi Geared Radial Drilling Machines are loaded with advanced features that comply with the universally accepted quality standards. Salient Features :
|
|
Technical Specifications
| Drilling Capacity | 40 mm | 50 mm | 60 mm |
|---|---|---|---|
| Spindle Nose | MT-4 | MT-4 | MT-5 |
| Spindle RPM | 85-550 | 60-650 | 60-650 |
| Drilling Radius Min / Max | 300 / 850 | 325 / 1050 | 350 / 1200 |
| Vertical Travel of Arm | 900 | 1100 | 1250 |
| Main / Elevating Motor | 2 HP & 1 HP | 3 HP & 1 HP | 5 HP & 2 HP |
