We are leaders in the market for providing best range of Pipe Threading Machine, All Geared Shaper Machine and V-Belt Drive Shaper Machine
We are reputed as one amidst the outstanding Geared Shaper Machine Exporters from India. The All Geared Shaper Machines, offered by us are available at maximum size between 18" to 42" to meet the specific requirements of the applications. Moreover, our Industrial Shaper Machines are loaded with advanced features that assist in easy operation and high productivity. Salient Features :
|
Technical Specifications
| Length of Ram Stroke | 660 | 800 | 930 | 1025 |
|---|---|---|---|---|
| Length of Ram | 1225 | 1600 | 1750 | 1900 |
| Width of Ram | 300 | 300 | 300 | 300 |
| Max. Distance From Table to Ram | 450 | 520 | 560 | 600 |
| Min. Distance From Table to Ram | 50 | 50 | 60 | 60 |
| Vertical Travel of Tool Slide | 140 | 160 | 185 | 200 |
| Swiveling Range of Tool on either Side | 60 degree | 60 degree | 60 degree | 60 degree |
| Table Size | 610* 380 | 760* 400 | 900* 450 | 1015* 508 |
| Horizontal Travel of Table | 600 | 700 | 810 | 940 |
| Vertical Travel of Table | 350 | 430 | 500 | 550 |
| Nos. of Speeds | 4 | 4 | 4 | 4 |

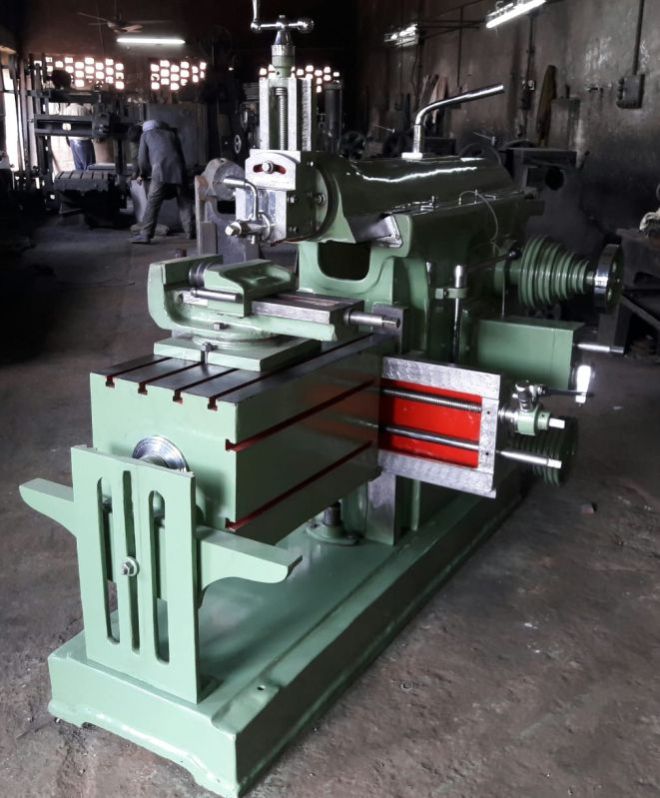

We have acquired noteworthy position amidst the preeminent Heavy Duty Shaping Machine Exporters from Batala. We manufacture V-Belt Drive Shaper Machines using optimum quality materials that ensures high durability, tensile strength and resistivity to adverse conditions. Moreover, our V-Belt Drive Machines are loaded with advanced configurations that comply with the international standards. Salient Features :
|
|
Technical Specifications
| Length of Ram Stroke | 660 | 800 | 930 | 1025 |
|---|---|---|---|---|
| Length of Ram | 1225 | 1600 | 1750 | 1900 |
| Width of Ram | 300 | 300 | 300 | 300 |
| Max. Distance from Table to Ram | 450 | 520 | 560 | 600 |
| Min. Distance from Table to Ram | 50 | 50 | 60 | 60 |
| Vertical Travel of Tool Slide | 140 | 160 | 185 | 200 |
| Swiveling Range of Tool on either Side | 60 degree | 60 degree | 60 degree | 60 degree |
| Table Size | 610* 380 | 760* 400 | 900* 450 | 1015* 508 |
| Horizontal Travel of Table | 600 | 700 | 810 | 940 |
| Vertical Travel of Table | 350 | 430 | 500 | 550 |
| Nos. of Speeds | 4 | 4 | 4 | 4 |
