Vertical Turning Lathe (VTL)

We are leaders in the market for providing best range of Vertical Boring Machine and Vertical Turning Lathes

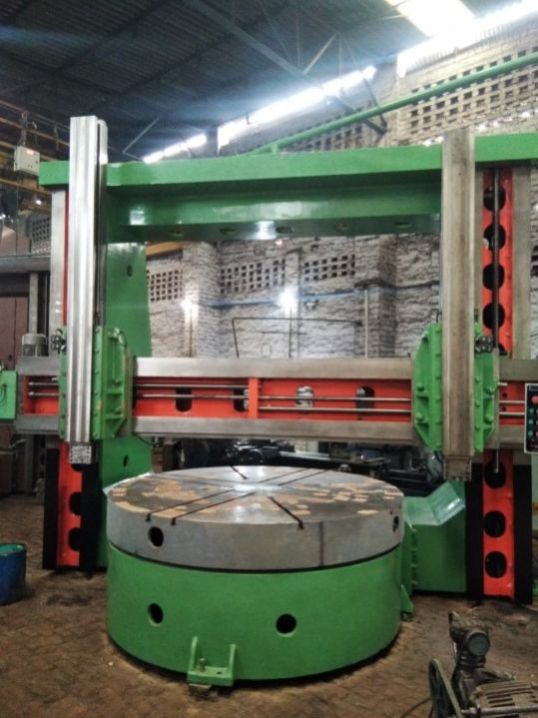

Vertical Boring Machine

Number Of Flower Vertical Boring
Certification CE Certified
Availability 100-1000kg
Country of Origin 220V
Rated Power 1-3kw, 3-5kw
Automatic Grade Automatic
Warrenty 1year

We bring forth the best quality Vertical Boring Machine in the market. Very easy to operate, our Vertical Boring Machines are high on demand in various industrial applications. Use of high quality metal in fabricating the body of the machine makes it sturdy and long lasting in nature. The machine is efficient in boring with minimum time. Attributes :

Automatic operation
Easy to operate
Long functional life
Low maintenance

Technical Specifications

Model No.	VT - 1	VT - 1.5	VT - 2	VT - 2.5	VT - 3	VT - 4	VT - 5
Max. Turning Dia	1100	1700	2200	2700	3200	4200	5200
Table Dia	1000	1500	2000	2500	3000	4000	4500
Max. Working Height	600	1500	1500	1500	1600	1600	1600
Max. Vertical Travel of Ram Head	500	800	800	800	900	900	900
Swivel Angel of Ram Head	± 30	± 30	± 30	± 30	± 30	± 30	± 30
Horizontal Travel of Side Ram Head (Optional)	250	375	500	625	750	900	1000
Vertical Travel of Side Ram Head (Optional)	400	1300	1300	1300	1400	1400	1400
No. of Table Speed	Stepless Infinitely Variable Speeds With AC Variable Frequency Drive
Range of Table Speed RPM	6-60	4-40	3-30	2-20	1.5-15	1-10	0.7-7
No. of Feeds Vertical / Horizontal	6	6	6	6	6	6	6
Rage of Vert. / Hor.(mm / min.)	3-12	2-8	1.5-6	0.5-5	0.5-5	0.5-5	0.5-5
Rapid Traverse of Head (mm / min.)	300	300	300	250	250	250	250
Main Motor (H.P.)	7.5	15	20	25	30	40	50
Ram Feed Gear Boz Motor (H.P.)	3	3	5	5	7.5	7.5	7.5
Auto Lifting of Cross Rail Motor(HP)	3	3	5	5	5	5	5

View Complete Details

Ask Latest Price & Details

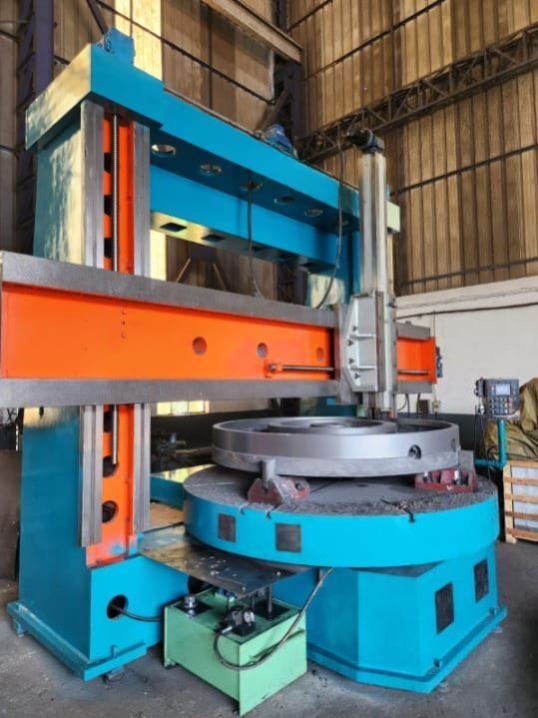

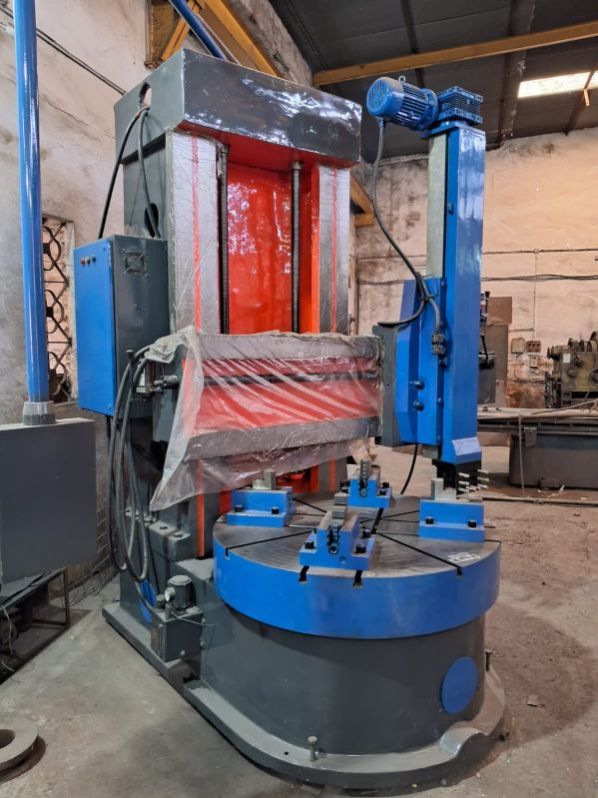

Vertical Turning Lathes

Material Cast Iron
Driven Type Electric
Condition New
Automation Grade Automatic
Speciality Easy To Use, High Efficiency, Reliable, Robust Construction
Usage Turning, Facing, Cutting
Certification ISO 9001:2008
Number Of Flower Vertical Lathe
Phase Three Phase
Total Carbohydrate 2 Year
After-Sales Service Provided YES
Country of Origin India
Machine Condition New

Vertical turret lathes excel in a range of machining operations, including turning, facing, boring, and tapping. The turret's ability to hold different tools enables the machining of complex geometries with precision. This machineorient the spindle in the vertical plane in a fixed position. The workpiece then spins, moving up and down to put it in line with the cutting head. These machines are less complex and easy to use than horizontal lathes.
