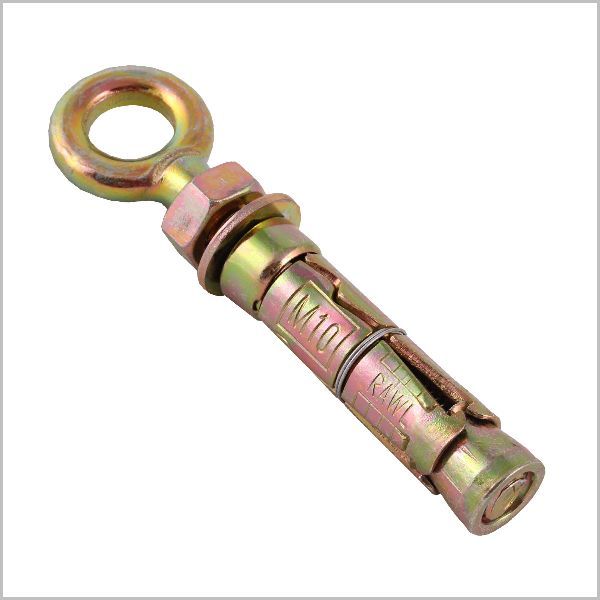

The Rawlbolt Shield Anchor is the world's most popular torque controlled expanding shield anchor, combining ease of installation with good load carrying capacity. All steel assembly differentiates the Rawlbolt from other alloy based shield anchors.It is the ideal general purpose anchor bolt, having higher degrees of expansion than other types of expansion anchor and excellent tolerance to variations in hole sizes. The collapsible ferrule ensures positive clamping force is transmitted to the fixture.All steel assembly differentiates the Rawlbolt from other alloy based shield anchors.

Features

1)All steel assembly for maximum performance

2)Bolt lengths suitable for xture thickness up to 150mm

3)Ferrule marked with hole diameter to ensure correct installation

4)Pressed steel segments ensure consistent dimensional accuracy and positive expansion

5)Optimum taper nut geometry for maximum expansion in all substrates.

Applications

1)For through fixing and spacing installations in interior construction work.

2)Quick and easy fixing of timber or metal door and window frames to brickwork or blockwork.

3)All kinds of timber including laths, frames, wall connection or render profiles, skirting boards, wall angles, cable ducts, cable and pipe clips, sheets etc. How to Install : 1)Drill a hole the same as the Nylon body using the fixture as a template. If the fixture thickness is less than the maximum, increase the hole depth accordingly. 2)Remove the debris with a hand pump, compressed air, or vacuum. 3)Insert the Anchor through the material being fastened and push to its full depth in the hole until the collar of the anchor contacts the fixture. 4)Insert the screw nail and tap with a hammer to expand the anchor for secure fixing. 5)Screw or hammer home the drive screw until the head is flush with the collar of the anchor. The drive screw can easily be removed with a screwdriver.

Om Fastener specializes in Pin Type Anchors for push through applications. Pin Type Anchors are impact-expansion type concrete anchors with an interior hole extending the length of the anchor. A hardened drive pin comes along the assembly inserted in the bolt. The anchor is threaded on the upper portion where the drive pin is inserted. Other end of the anchor has four equally spaced slots for a portion of its length, with ribs extending the circumference of the anchor for a portion of its length. Pin Type Anchors are yellow dichromate plated over zinc.

Features

1)Drill hole size is equal to actual anchor size, thus no templates required.

2)Quick and simple hammer set installation eliminates need of any special tools and also reduces installation time.

3)Easy (visually) inspection.

4)Yellow Dichromate plating over zinc.

Applications

1)Railings.

2)Profiled Steel.

3)Machines.

4)Gratings.

5)Fire Fighting Equipments.

6)Lighting Fixtures.

7)Conduit Pipes.

8)Gates.

9)Consoles.

10)Steel Constructions.

Om Fastener Wedge Anchors are fully threaded, stud type, high-grade steel anchors for use in solid concrete or grout-filled concrete masonry. It is assembled with a three-segment expansion clip and supplied complete with nut and washer. Expansion clip ensures uniform holding capacity that increases as tension is applied. The threaded stud version is available in six diameters and multiple lengths. Threaded studs are set by tightening the nut. Wedge anchors are best suited to static applications.

Features

1)Non bottom bearing: No need for exact hole depth - Hole bottom not required to set anchor.

2)Dual embossments on each clip segment: Enables clip to undercut into the concrete thereby increasing follow-up expansion should a crack occur.

3)Type 316 stainless-steel clip on stainless steel anchors: In addition to superior corrosion resistance, a stainless-steel clip offers "memory" that contributes to the anchor's performance if the hole increases in size because of a crack.

4)High Performance: Anchorage occurs near bottom of hole giving a true 360 of contact.

Applications

1)Curtain Wall.

2)Barriers.

3)Handrails.

4)Racking.

5)Structural Steel/ Steel Base Plates.

6)Hand Rails.

7)Heavy Plant.

8)Passenger Lifts.

9)Seating.

10)Cable Trays.

11)Pipe Support.

12)Brick Shelf Angle.

13)Mechanical Equipments. Technical Descriptions Suitable for : Concrete Dense Natural Stone How to Install : 1)Drill a hole in the base material using a carbide drill bit of same diameter as the nominal diameter of the anchor to be installed. To ensure proper and secure fit, the hole drilled in the concrete should be the same diameter as the thread on the concrete wedge anchor. 2)Drill the hole to the specified embedment depth and blow it clean using compressed air blower or a brush. Overhead installations need not be blown clean. Alternatively, drill the hole deep enough to accommodate embedment depth and dust from drilling. 3)Assemble the anchor with nut and washer so that the top of the nut is flush with the top of the anchor. Place the Welfast Wedge Anchor in the fixture and drive into the hole using a hammer until washer and nut are tight against the fixture. The anchor must be driven until at least six threads are below the surface of the fixture. 4)Tighten the nut to the recommended installation torque. 5)Using a proper sized hammer, set pin with several accurate strikes on the head of the pin until the pin is flush with the top of the anchor. The concrete anchor is now properly set eliminating the need to torque the nut to set the anchor.

Nylon Anchors are pre-assembled through fixing, a light duty nail expanding for solid masonry and hollow wall constructions. The design of the expansion nail used in the Nylon Anchor is such that it can be removed if need be. It has a small slot across the head of the nail to accommodate a small screwdriver blade, when turned anti-clockwise by the screwdriver the nail will be wound part way back out of the nylon sleeve.This enables a claw hammer to be hooked under the protruding head of the nail and pulled out of the nylon sleeve. Having withdrawn the expansion nail fully you can now pry out the nylon anchor body.

Features

1)Nylon plug body for longer life and durability.

2)Simple Hammer setting with a hammer no screw driver required.

3)Nail can be removed or loosened any time (cross-head in nail head).

4)Through-fixing, eliminating the need for marking and repositioning.

5)Optimum performance in terms of electric insulation, tensile strength and high pressure.

6)Anti rotation barbs prevent the anchor from rotating in the hole.

7)Nylon Sleeve reduces cold bridging compared with metal fixings and also assists in shear capacity.

8)Countersunk sleeve and screw allow a flush finish.

9)Largely resistant to chemical attack.

10)Withstands temperatures from -20oC to +60oC.

Features

1)Nylon plug body for longer life and durability.

2)Simple Hammer setting with a hammer no screw driver required.

3)Nail can be removed or loosened any time (cross-head in nail head).

4)Through-fixing, eliminating the need for marking and repositioning.

5)Optimum performance in terms of electric insulation, tensile strength and high pressure.

6)Anti rotation barbs prevent the anchor from rotating in the hole.

7)Nylon Sleeve reduces cold bridging compared with metal fixings and also assists in shear capacity.

8)Countersunk sleeve and screw allow a flush finish.

9)Largely resistant to chemical attack.

10)Withstands temperatures from -20oC to +60oC.

How to Install :

1)Drill a hole the same as the Nylon body using the fixture as a template. If the fixture thickness is less than the maximum, increase the hole depth accordingly.

2)Remove the debris with a hand pump, compressed air, or vacuum.

3)Insert the Anchor through the material being fastened and push to its full depth in the hole until the collar of the anchor contacts the fixture.

4)Insert the screw nail and tap with a hammer to expand the anchor for secure fixing.

5)Screw or hammer home the drive screw until the head is flush with the collar of the anchor. The drive screw can easily be removed with a screwdriver.

Technical Descriptions

Suitable for :

• Concrete
• Light Weight Concrete
• Sand-Lime Solid Bricks
• Solid Red Bricks
• Clinker Bricks
• Solid Pumice
• Perforated Pumice
• Gypsum Plasterboards
• Natural Stone

We are instrumental in providing Studs Bolts / Studs, which is in great demand due to its high tensile strength, perfect finish and abrasion resistance. It is available in varied specifications & sizes and finds application in automobile, engineering & allied industries. Our range of is extensively used in assemblies of engine casing, motor body, valve manufacturing and pump mounting. Other details of the product:

• Using IS:2062 Grade A, En-8, En-19, SS-410, SS-304, SS-316
• As per IS:1367 Class 5.6, Class 8.8, Class 10.9, Class12.9, ASTM A193 B7, ASTM A193 B8, B8M, B16, ASTM A563 L7 & L7M
• urface Treatment: blacklisted, phosphates, zinc plated with yellow, blue, olive green passivisation
• Threading Sizes: from M6 to M100 ISO metric 6g as per IS:4218 or equivalent in BSW / UNC
• Full thread studs as per DIN 975
• Rods with threading on one side as per DIN 524
• Studs with threading on two sides as per DIN 939, DIN 940, IS 1862 Type A, B & C
• Tip-welding studs
• Tie rod studs for plate type heat exchangers
• Square / ACME thread studs (lead screws)

Chemical Anchors are high performance anchor system for use in safety critical applications. The assembly works on the principle of adhesion between concrete and chemical (resin) thus eliminating any effects of expansion forces. Chemical anchors are highly suitable in applications requiring close edge and spacing distances. Also these are a preferred choice in wet conditions as well underwater applications. Features 1)High Performance. 2)Quick and Easy Installation. 3)Highly preferred in wet conditions and also used underwater.



Features

1)High Performance.

2)Quick and Easy Installation.

3)Highly preferred in wet conditions and also used underwater.

4)No load stress imparted to the base material as with expansion type anchors, hence ideally suited for high load applications.

5)No effects of pollutants as with mechanical anchors except the increase of curing time.

6)No mixing, no mess and no waste



Applications

1)Light Duty Applications: These include many fixings for residential use (i.e. bathroom fixings, window shutters, satellite dishes, air conditioners, outside lights, hanging cabinets, etc.)

2)Vibration/External Force Applications: Chemical Anchor is ideal in settings where external effects must be considered. Vibrations due to wind or machine operation can be overcome through the use of Chemical Anchor, which will securely retain the fixing element.

3)Heavy Duty Applications: Heavy duty fixings can include varied weight loads where life and dead loads must be considered. This includes applications such as I-beams, balconies and railings.

4)Problematic Fixings: In certain situations, Chemical Anchor is the only solution for fixing a load. Problematic applications include wet and underwater fixings where corrosion and aggressive environmental effects must be considered. Environments containing aggressive chemicals or which are regularly exposed to salt water are also ideal application areas for Chemical Anchor. It creates a total form closure that protects the anchor rod from corrosion. Cracked concrete is another problematic application. Also useful in situations involving fixing a load with close axial or edge distance. Chemical Anchor will hold heavy loads that must be fixed close to the edge without creating any internal pressure.

4)Post-Installed Rebar: Post-installed rebar is an application that can only be completed using Chemical Anchor.



How to Install :

1)For the specified anchor size, select carbide or core drill bit with nominal diameter as listed below in Table.

2)Drill hole to depth listed below.

3)Essentially clean holes with brush and blower.

4)Remove debris with hole cleaning pump, compressed air or with a brush.

5)If the holes are wet or flooded, clean hole with brush.

6)Insert Capsule into hole.

7)Spin in Welfast Stud as per required anchorage depth using a rotary hammer drill.

8)Allow adhesive to cure for the time as listed below.

9)When cured, tighten nut applying the necessary tightening torque.



Technical Descriptions

Suitable for :

• Concrete
• Dense Natural Stone



Nylon Anchors are pre-assembled through fixing, a light duty nail expanding for solid masonry and hollow wall constructions. The design of the expansion nail used in the Nylon Anchor is such that it can be removed if need be. It has a small slot across the head of the nail to accommodate a small screwdriver blade, when turned anti-clockwise by the screwdriver the nail will be wound part way back out of the nylon sleeve.This enables a claw hammer to be hooked under the protruding head of the nail and pulled out of the nylon sleeve. Having withdrawn the expansion nail fully you can now pry out the nylon anchor body.Features;1)Nylon plug body for longer life and durability.2)Simple Hammer setting with a hammer no screw driver required.3)Nail can be removed or loosened any time (cross-head in nail head).4)Through-fixing, eliminating the need for marking and repositioning.
