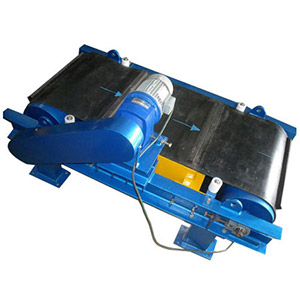

Overband Cross Belt Magnetic Separator

Salient Features

• Used in either ceramic or powerful rare earth magnet.
• Separator body covering.
• Low maintenance
• Roughest construction
• High efficiency of separation
• Long belt life

Applications

• There are total five types of separators RE designed to operate at a predetermined working gap over the conveyor:
• The speed of the belt , the nature of the product, its density, its granulometry and the size of the pieces which have to be extracted are on of the parameters to be taken into consideration when choosing the type of Overband.
• Five type of Separators Redesigned to operate at a predetermined working gap over the conveyor : 100, 150, 200, 250 and 300mm.
• 100mm
• 150mm
• 200mm
• 250mm
• 300mm

Construction
Two U-section pieces are fixed on the Magnet by Fastening ears and are supporting bearings of Drums. Drums are equipped with shafts mounted on removable hubs. All bearings equipped with stakes for tightening the belt.The belt is driven by a Reduction Gear Coupled to Electric Motor / Geared Motor by Vee- belts.
Magnet Unit
The Magnet is made of High-Intensity Strontium Ferrite / Rare Earth Magnets and is guaranteed for the Magnetic Power throughout the life of the installation. A Non – Magnetic Stainless steel Plate is provided to cover the poles of Magnet. There is no need for any electrical supply or maintenance.
Installation
These units can be installed either in-line over the terminal head pulley (Fig – 1. ), or transversal to the conveyor (Fig – 2). In both cases, it is necessary to foresee Non- Magnetic products under the Magnetic Field.The most effective position is inline (Fig – 1) over the head pulley. The material being conveyed is in virtual Suspension and Tramp Iron is, therefore, more readily extracted. Very good results are obtained by combining a Permanent Magnetic Overband with Permanent Magnetic Pulley at the discharge end.
