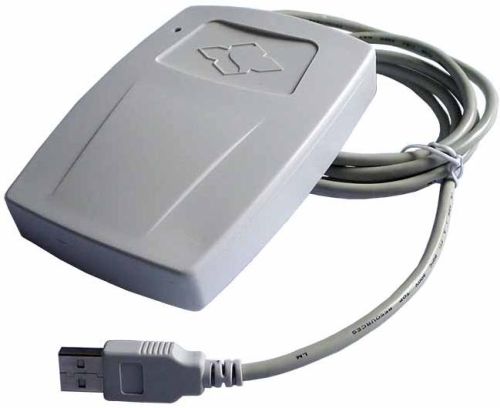

mr811 series desktop contactless ic card reader/writer is based on nxp series rf chip with high performance arm7 mcu. The communication is according to usb pc/sc standard. The reader fully supports the ic card according to iso14443 standard, especially completely supports iso14443-4 contactless cpu card.Â
the reader builds in 2 sam slots, and fully supports sam according to iso7816.
main characteristics
- • true usb pc/sc interface, compatible with many pc/sc readers in the market
- • high speed arm7 mcu and advantage firmware provide very high card process speed
- • rf interface and protocol process with emv2010 level 1 certification ability
Â
technical parameters
- • pcd: nxp mf rc531
- • working frequency: 13.56mhz
- • rf standard: iso14443a, iso14443b
- • operating distance: 100mm (mifare one, typical)
- • sam slot: 2 slots, terms iso7816 (t=0 & t=1, terms pps, max. 230400bps)
- • display: 1 tri-color led
- • buzzer: build in
- • data flash: 4 mbytes
- • interface: usb pc/sc standard
- • power supply: dc5v ± 10%
- • power consumption: 0.9w
- • dimension: 123mm * 88mm * 25mm
- • weight: about 100g
- • operating temperature: -25 ~ +85 ℃ (-77 ~ +185°f)
- • storage temperature: -40 ~ +125 ℃ (-104 ~ +257°f)
- • pc software: pcsc communication tool
- • sdk: base on windows, free
- • sample code: vc, vb, c++ builder, delphi, power builder
- • isp: terms
2,038.08 / Piece Get Latest Price
