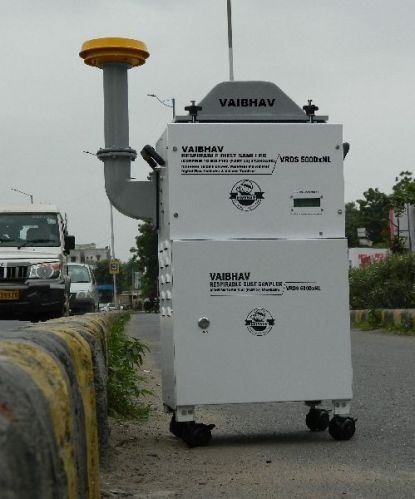

Respirable Dust Sampler - VRDS 500DxNL, Feature : Durable, Eco Friwndly, Fine Finished, Precise Design

₹ 90,500 / Piece

Brand NameVAIBHAV
ConditionNew
Automation GradeFully Automatic
PowerAC
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

Sabarmati, Ahmedabad, Gujarat

4.6/5

Member Since 15 Years
Nature of Business Manufacturer
GST No. 24AIOPS8140F1Z1

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

FeatureDurable, Eco Friwndly, Fine Finished, Precise Design
Total Carbohydrate14 MONTHS
DisplayDigital, ANALOG (OPTIONAL)
Flow Rate0.5-1m3, 1-1.5m3
Automation GradeFully Automatic
Brand NameVAIBHAV
PowerAC
Number Of FlowerRespirable Dust Sampler, RESPIRABLE DUST SAMPLER
Availability30-40kg
Country of Origin220V
ConditionNew
Clock / TimerProgrammable Real Time control system with control of automatic start & stop, number of required intervals can be programmed, Timer is used to start and shut off the sampler at preset time
Suction Blower..Dynamically balanced, Brushless, regenerative, belt less almost maintenance free & zero consumable noise less turbine blower with little noise.
Particulate Sampling..RSPM is accumulated on the filter paper (8”X10” size) while coarse dust is collected in a cup placed under the cyclone
Auto Zero of VolumeBy pressing single key volume will be auto zero
Suction Blower..Multi bladed impeller revolves at a very high speed in a specially designed stator cum compression chamber ensuring very fine clearance between them
Digital ManometerDigital display of manometer flow on 16 character, 2 line LCD display. Flow indication in two digit with 3 decimal places & volume tantalization indication in five digit with 2 decimal place.
Night ViewProvision has been made for light in the sampler for taking reading during dark area and in night hours
Particulate Sampling10 micron down to 0.1 micron (depending upon type of filter used). A cyclone is used for fractionating the dust into two fractions, D-50 cutoff for the cyclone is at 10 microns.
Time Recorder0 to 99999.99 hrs. time totalizer records the running time in hours
Power RequirementSingle phase AC 220 volts, 50 Hz, sampler unaffected by +/- 10 % fluctuation in supply voltage. For proper operation and safety a good earth connection is mandatory
HardwareOnly SS corrosion free hardware used in sampler
Particle SizeSeparate provision for collection of Respirable and non Respirable (less than and greater than 10 micron) size particles
ConstructionThe body of RDS is robust enough to withstand impacts and vibration in transportation, it is made of heavy aluminum sheet.
IS ReferenceMatch the requirement prescribed in BIS 5182(Part-23) 2006
Filter HolderTo accommodate any standard filter paper of 20.3cm x 25.4cm (8inchX10inch) in size, particulate bigger than 10 micron collected in separate dust cap under the cyclone
Flow Control..When dust load increases beyond the capacity of the blower the flow rate will begin to decrease and the system will automatically be shutdown if the flow rate tends to drop below 15% of pre set level
Suction Blower...The impeller is fitted directly onto a bearing mounted shaft of a superior quality flanged electric motor. 100 % oil free required zero lubrication
DimensionApproximately 410mm X 300mm X 700mm
Special FeatureDesign as per Indian standard BIS 5182(Part 23):2006,digital flow indicator & volume totalizer, waterless manometer eliminate filling of distilled water & maintaining zerolevel in glass manometer tube
Flow ControlThe system will automatically maintain the flow rate constant and compensate for dust load deposited on the filter.
Sampling Time30 hours (maximum)
Filter Media8inch X 10inch (203mm X 254mm / 20.3cm X 25.4 cm) Glass microfiber filter for common use and EPM 2000 or equivalent for special monitoring / research work
Special Feature..Electronic flow controller, Sampling flow will maintain the pre set level even during filter chocking, ampere and voltage variation, instrument will auto shut if flow vary from set flow & time limit.

special features

 confirm to bis 5182 (part 23) : 2006 standard

 sampling flow rate will maintain automatic at pre set level even during filter chocking, ampere & voltage variation with electronic feedback controller

 digital manometer with volume totalizing (waterless manometer, no need of filling and adjusting zero lever with distilled water)

 digital manometer eliminated glass manometer tube brakeage & water evaporation during sampling

 flow will be readout upto to three decimal place.

 provide sample volume in at any stage of sampling on display

 sturdy aluminum construction with ss hardware

 little noise during operations

 maintenance free brushless regenerative heavy duty induction suction assembly

 totally eliminated of electromagnetic interference (emi) to tvs is totally eliminated

 blower immune to voltage fluctuations thus eliminating need of voltage stabilizer

 compact, portable, easy to operate-transport & handle

 arrangement for parallel gaseous sampling

 light provision for working in night & dark area
