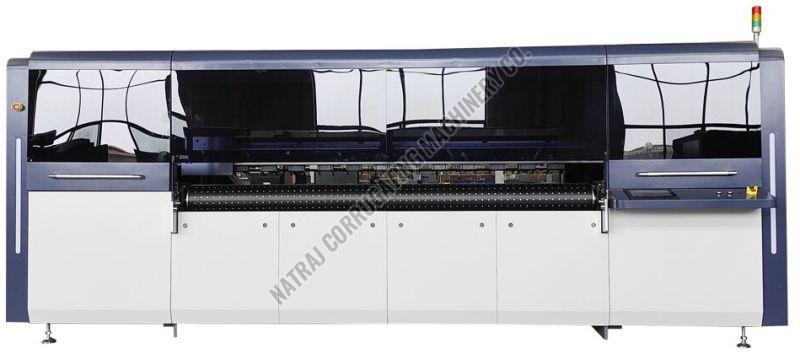

2500-E8-Multi Pass Corrugated Cardboard Digital Printer - Rnn

Digital Printer for corrugated box

High-Speed RS2500-S-E8 Corrugated Cardboard Printer – Precision Printing for Industrial Packaging

[Corrugated Cardboard Printer | Epson i3200 | High-Speed Industrial Printing]

Upgrade your packaging process with the RS2500-S-E8 Scanning Corrugated Cardboard Printer, designed for high-volume, high-precision industrial printing. Equipped with 8 Epson i3200-A1 printheads, this printer delivers vibrant, accurate CMYK prints on a wide range of cardboard materials—without the need for traditional plate-making.

Key Features & Specifications

Printhead: 8× Epson i3200-A1 micro piezoelectric heads for stable, long-lasting performance

Print Resolution: ≥360×600 dpi with variable ink drop technology for multi-grayscale precision

Printing Speed: 300–600㎡/hour for fast turnaround

Maximum Format: 2500mm × 1350mm (auto feed), unlimited length (manual feed)

Material Thickness: Handles 3mm to 40mm, customizable

Ink Type: Water-based dye & pigment inks for eco-friendly, vivid output

Automatic Feeding System: Sun wheel pressure rollers for accurate sheet alignment

Intelligent Control: No plate-making, auto color calibration, user-friendly operation

Power Supply: Approx. 20KW, AC380±10%, 50–60Hz

Machine Dimensions: 4920mm × 3107mm × 2195mm | Weight: 3500kg

Warranty: 12 months (excluding consumables)

Benefits for Your Business

Maximize Throughput: High-speed operation significantly increases daily production volume

Reduce Operational Costs: Eliminate plate-making and color matching processes

Precision Printing: High-definition, consistent print quality across all cardboard types

Flexible Material Handling: Easily adapts to various board sizes and thicknesses

Boost ROI: Quick setup, reliable automation, and low ink waste for long-term savings

Compact, Durable Design: Built for continuous, heavy-duty industrial use

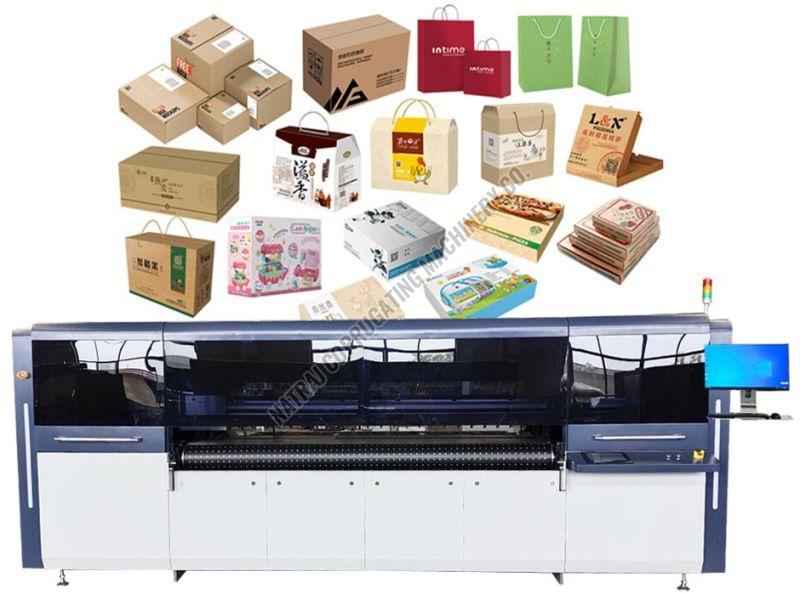

Industry Applications

Ideal for businesses in:

Corrugated Packaging

E-commerce Fulfillment

Food & Beverage Boxes

Retail & Display Packaging

Custom Print Packaging Solutions

Whether you’re a print house or a packaging manufacturer, the RS2500-S-E8 offers the scalability, efficiency, and quality needed for high-demand environments.
