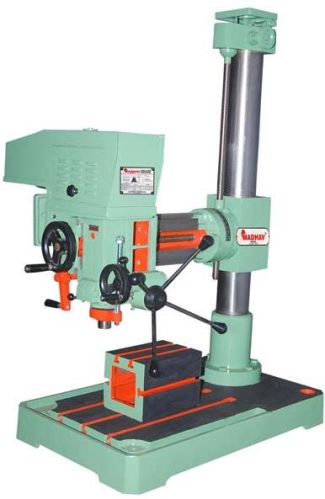

25mm Capacity Radial Drilling Machine

Minimum Order Quantity : 1 Piece(s)
Sold By : Vandana Industries

Product Specifications

14) Over all Base Size1010x605
13) Base Size (Machined Area)1010x605mm
16) V-Belt SectionB-38
4) Max. Dist. Spindle Nose to Table615mm
8) Spindle Travel210mm
11) Tilting 360
7) Taper in SpindleMT-3
18) Weight (Approx)450kg
17) Motor 1440 rpm1HP & 0.5HP
10) Range of Speed116 to 2880 rpm
12) Table Size275x200x200mm
9) No. of Speed8
1) Drilling Capacity25mm
15) Over all Height with Guard1650
6) Dist. from Spindle Center to Pillar Surface700mm
2) Tapping Capacity19mm
3) Column Diameter129mm
5) Max. Dist. Spindle Nose to Base815mm
Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

We offer universal radial drilling machine that is made from high grade cast iron, en bar, etc. Using latest technology. The heavy duty universal radial drilling machine, we offer, is used for varied range of operation like drilling, boring, reaming and honning in cast iron, steel and other materials.

Additional Information

Delivery Time3 to 4 weeks
