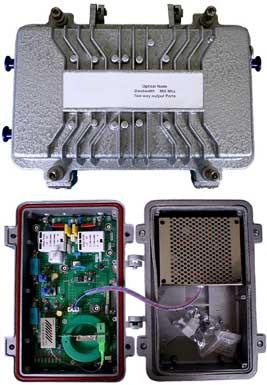

2600 Fiber Optic Node

Optical Node WT-2600 Features Two two-way output ports. Return path transmitter module plug in (optional) Input Optical Receiver Pin Type /Module Type (Optional) Bandwidth 5- 860 Mhz Plug-in two-way filters, band split frequency (Optional) Output level and slope range continuously adjustable. LED indication for -5 dbm, -2 dbm, 0dm & +2dbm Input Optical power measurement Operating Wave length 1290 < 5 nm Flatness +0.50db Output level 100 db (Tested at -1 db m) Slope range 0-6 db Gain control 0-10 db Fiber type single mode (9.125 um) FC / Apc sc/ Apl fiber connector Input optical return loss >45 db
