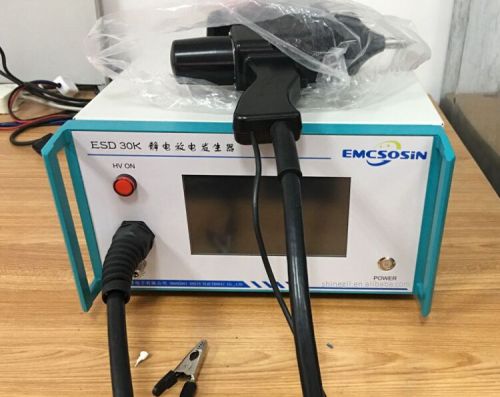

30kV Electrostatic Generator

Esd genertor is used to evaluate the electrostatic immunity performance of electrical components and electronic equipments by simulating real electrostatic discharge as defined in the standards iec en 61000-4-2.
Features
1) fully compliant with latest standards iec en 61000-4-2
2) user friendly 7� touch panel display
3) support multi-language & facilitate users
4) built-in environment self-test program
5) programmable operation
6) pre-programmed iec en 61000-4-2 test settings
7) very convenient to replace the discharge modules to meet different standards of the test requirements
8) rs232 usb port, pc control operation & printable test report
9) comfortable use and convenient operation
technical data
1) model: esd 30k
2) standard: iec61000-4-2
3) operation: 7inch touch panel display
4) output voltage: 0.2~ â±30 kv
5) polarity: positive negative alternating
6) energy storage capacity: 150pf
7) discharge resistor: 330î©
8) discharge current rise time: 0.6~1ns
9) the first peak current (â±15%): 7.5a at 2kv 15.0a at 4kv 22.5a at 6kv 30.0a at 8kv
10) current at 30ns (â±30%): 4.0a at 2kv 8.0a at 4kv 12.0a at 6kv 16.0a at 8kv
11) current at 60ns (â±30%): 2.0a at 2kv 4.0a at 4kv 6.0a at 6kv 8.0a at 8kv
12) holding time (air discharge):�5s
13) discharge modes: contact discharge & air discharge
14) operating modes: single discharge & repetitive discharges
15) discharge trigger: manual, automatic or remote
16) working mode: iec level mode user mode program mode voltage rising patterns
17) discharge interval: 0.05~9.99s
18) discharge count: 1~9999
19) power supply: ac220v â±10%,5060hz(custom specific on demand)
