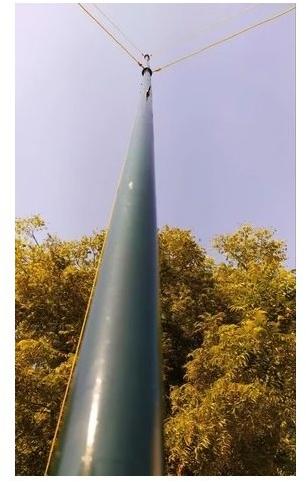

36 Feet Aluminium Tubular Antenna Mast, Model Number : Th-36feetmast

₹ 19,500 - ₹ 25,500 / SET

BrandANOKHA SANGAM
MaterialALUMINIUM
GradeALUMINIUM
Packaging TypeMilitary Grade,Military Grade
Supply TypeManufacturer, Exporter, Supplier, Trader
Preferred Buyer Location All over the world

Company Information

Member Since 2 Years
Nature of Business Manufacturer
GST No. 07FIWPS9723M1ZY

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

ConditionNEW
Industrial UseYES
CustomizationYES
Lead Time1-2 WEEKS
Place of OriginINDIA
ColourMilitary Grade
BrandANOKHA SANGAM
Number Of Flower36 FEET TUBULAR ALUMINIUM ANTENNA MAST
Country of OriginIndia
Size36 FEET
Model NumberTH-36FEETMAST
Brand NameANOKHA SANGAM,ANOKHA SANGAM
MaterialALUMINIUM
ShapeROUND PIPE
ApplicationTELECOMMUNICATION. TELECOM PRODUCT
Availability30 KG
Shelf Life5 YEARS
GradeALUMINIUM
Packaging TypeMilitary Grade,Military Grade
GenderNA
Feature36 FEET TUBULAR MAST
Warranty12 MONTHS

Product Specification

Antenna/Tower Height	36 feet (11 mtr)
Country of Origin	Made in India
Material	Aluminum
Pipe OD	60 mm
Weight	20 kg
Wind Speed	40 mtr / sec
Product Type	Tubular Antenna Mast with Accessories
Set Contains	Rope,Hammer,Mount,Bracket,Bolt,Base etc
Minimum Order Quantity	1 Set

Product Description

Technical Specifications
36 feet Aluminum tubular mast consists of 6 section, each made of 2” Aluminum pipes of 6 feet long of minimum 2 mm wall thickness
The section at one end should be dying pressed minimum 6 inches, so that it couples to the other corresponding section properly, Coupling pipe of 12" 2.5mm wall thik For AE mast sections . = (Qty 5)
One base plate galvanized of size, 1.57 x 1.5ft x 5mm with holding pipe and 4 ground pegs of 10 inches and 16mm duly galvanized to be provided for fixing it to the ground Three pes of anchors 38x38x5mm thick of 24 inch long with hole for guy rope fitting to be provided Two sets of PVC ropes (3 guys peg set) to be provided at 30ft and 50ft & one 60 ft PVC rope (Total 300 ft) with suitable rope tightens and thimbles. two heavy duty canvases carry bag to be provided for carrying accessories. 1.5kg Hammer 1 pc., Middle guy plate 1pes, Top guy plate 1 pes, patti =6 ,nut Bolt with washer 3", for coupling of mast Sections. (Qty 21)

Additional Information

Item Code	73089070
Delivery Time	1 weeks
Production Capacity	50 Mast Ready Stock
Packaging Details	36 feet Tubular Mast with accessories Technical Specifications 36 feet Aluminiam tubular mast consists of 6 section/ each made of 2” Aluminiam pipes of 6 feet long of minimum 2 mm wall thickness The section at one end should be dying pressed minimum 6 inches/ so that it couples to the other corresponding section properly/ Coupling pipe of 12" 2.5mm wall thik For AE mast sections . = (Qty 5) One base plate galvanized of size/ 1.57 x 1.5ft x 5mm with holding pipe and 4 ground pegs of 10 inches and 16mm duly galvanized to be provided for fixing it to the ground Three pes of anchors 38x38x5mm thick of 24 inch long with hole for guy rope fitting to be provided Two sets of pvc ropes (3 guys peg set) to be provided at 30ft and 50ft & one 60 ft pvc rope (Total 300 ft) with suitable rope tightens and thimbles. two heavy duty canvases carry bag to be provided for carrying accessories. 1.5kg Hammer 1 pc./ Middle guy plate 1pes/ Top guy plate 1 pes/ patti =6 /nut Bolt with washer 3"/ for coupling of mast Sections. (Qty 21)

Additional Information

Payment Terms D/A, D/P, T/T, Western Union
Port of DispatchINDIA
Packaging DetailsItem Code 73089070 Delivery Time 1 weeks Production Capacity 50 Mast Ready Stock Packaging Details 36 feet Tubular Mast with accessories Technical Specifications 36 feet Aluminiam tubular mast consists of 6 section/ each made of 2” Aluminiam pipes of 6 feet long of minimum 2 mm wall thickness The section at one end should be dying pressed minimum 6 inches/ so that it couples to the other corresponding section properly/ Coupling pipe of 12" 2.5mm wall thik For AE mast sections . = (Qty 5) One base plate galvanized of size/ 1.57 x 1.5ft x 5mm with holding pipe and 4 ground pegs of 10 inches and 16mm duly galvanized to be provided for fixing it to the ground Three pes of anchors 38x38x5mm thick of 24 inch long with hole for guy rope fitting to be provided Two sets of pvc ropes (3 guys peg set) to be provided at 30ft and 50ft & one 60 ft pvc rope (Total 300 ft) with suitable rope tightens and thimbles. two heavy duty canvases carry bag to be provided for carrying accessories. 1.5kg Hammer 1 pc./ Middle guy plate 1pes/ Top guy plate 1 pes/ patti =6 /nut Bolt with washer 3"/ for coupling of mast Sections. (Qty 21)
Delivery Time1-2 WEEKS
