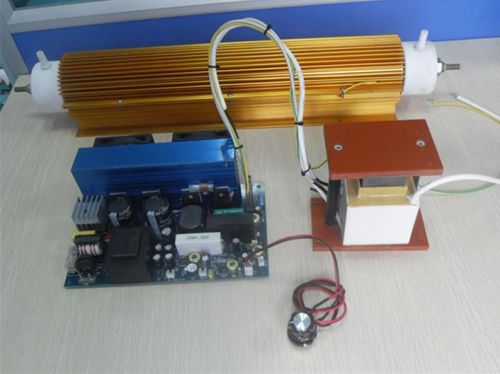

60g/h Ceramic Tube Ozone Generator, Brand Name : TAISHNEG

We are offering 60g/h ceramic tube ozone generator.
model ts-60ga
power 50-800w(adjustable)
size size:tube600x100x100mm;circuit200x150x100mm;high voltage transformer130x100x125mm
cooling method in water,out air
weight weight: reaction tube5.7kg;power supply3.7kg
air flow 100lmin,
ozone density 5.8mgl
ozone production 34.8gh
oxygen flow 15lmin
ozone density 68mgl
ozone production 61.2gh
ts-60ga 60gh ceramic tube ozone generator
the following is the ceramic tube ozone generator features: high efficiency: adopt narrow gap discharge (0.5-0.8mm) high rate ozone converter with low noise; low power consumption: high voltage high frequency corona discharge, power consumption is 8-10kw.hkgo3; smaller overall size: compare to the other brand similar products, our products size will less 13-12 no breakdown: the reaction tube operating voltage only 10% of the breakdown voltage, so high dielectric constant. Excellent quality: the dielectric material adopt imported high purity alumina ceramic, and formed by high temperature, it has high accurate due to grind two times, discharge flatness,316l stainless steel for internal electrode, teflon for gas nozzles, and anti corrosion high purity fluorine rubber sealing, external adopt latest sun halo alumina alloy heating dissipation technology, effectively heating dissipation, long time operating ozone reduced less< 5%,long time for service which will be 20000 hours;
