7 Ply Fully Automatic Corrugated Box Making Machine

Name: 7 Ply Fully Automatic Corrugated Box Making Machine
Brand: Nagpal Natraja
SKU: EI-3011162
Price: 15500000 INR
Availability: InStock
Rating: 4.6 (30 reviews)

Price:

1.55 Cr -

3 Cr / Set

Get Latest Price

Minimum Order Quantity : 1 Set(s)
Sold By : Natraj Corrugating Machinery Co

Send Inquiry

Product Specifications

Automatic GradeAutomatic
Brand NameNagpal Natraja
CertificationISO 9001:2008
Power200 Kw
ConditionNew
ApplicationCorrugated Sheet Making,5 ply corrugated board production line
Warrenty1year
Country of Origin380V
Availability80000kg
Number Of FlowerCorrugated Sheet Making Machine
name3/5/7 ply Fully Automatic corrugated board production line
corrugated box making machineAutomatic corrugated board plant
Supply TypeManufacturer, Exporter, Supplier, Retailer, Importer

Preferred Buyer From : All over the world

Product Overview

1. Personnel Requirements:

Station / FunctionNo. of Operators

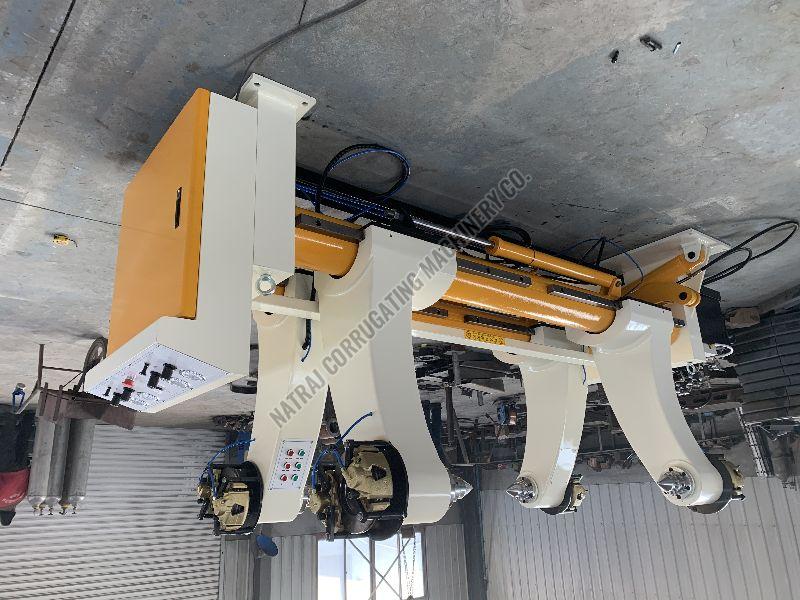

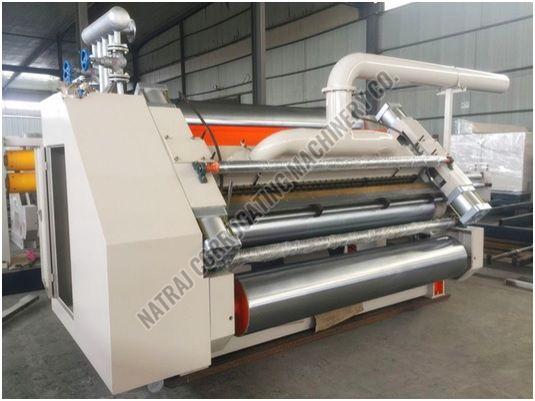

Mill Roll Stand & Single Facer	1
Double Facer	1
Slitter Scorer & Cut-Off	1
Stacker	2
Boiler	1
Glue System	1
Chief Operator / Supervisor	1
Total	9 Persons

2. Production Parameters:

ParameterSpecification

Running Width	1800 mm / 950 mm
Maximum Speed	150 m/min
Working Speed	130 m/min (3 Ply), 100 m/min (5 Ply)
Monthly Output	1000–1500 tons (1 shift × 12 hrs × 24 days)
Max. Sheet Size	1800 mm × 3500 mm
Min. Sheet Size	125 mm × 500 mm

3. Paper & Adhesive Specifications:

ParameterDetails

Paper Grades	Medium: 90–180 gsm Liner: 110–400 gsm
Adhesive Type	Starch-based
Starch Consumption	3 Ply: 10–15 g/m² 5 Ply: 20–30 g/m²

4. Utilities & Environment:

RequirementSpecification

Steam Pressure	1.2 MPa
Steam Consumption	Approx. 3000–3600 kg/h
Power Capacity	Approx. 326 kW
Power Supply	380V, 50Hz, 3 Phase
Occupied Space	Approx. 10 m × 80 m (operation included)
Max. Machine Height	4.25 meters

Additional Information

Payment Terms L/C, D/A, D/PT/T
Port of DispatchMumbai
Packaging Detailsstandard export packing
Delivery Time120 days
