    Plastic 8 Channel Data Logger, Power Source : Electric
    • 8 Channel Data Logger
    • 1940635
    • 1940636

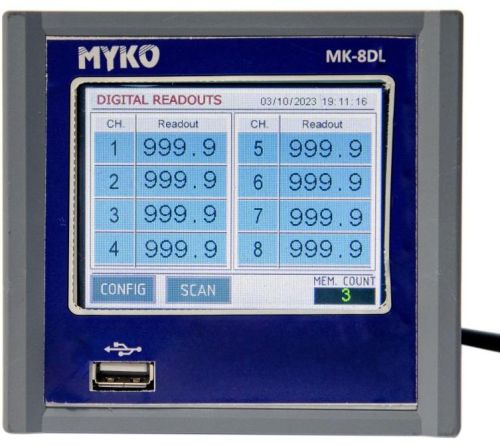

    Plastic 8 Channel Data Logger, Power Source : Electric

    Get Latest Price
    • MaterialPlastic
    • Display TypeDigital
    • Power SourceElectric
    • ApplicationUniversal Input
    • Supply TypeManufacturer, Supplier, Retailer
    • Preferred Buyer Location All over the world

    Features : 8 universal input ( RTD. Thermocouple, 0-5Vdc, 0-20mA or 4-20 mA input signals. Onboard 32000 reading per channel storage . Parallel Port Individual HI / LO alarm with 2 relay....
    View More Details
    Send Enquiry

    Company Information

    Myko Electronics Pvt. ltd.verified-icon
    location Saki Vihar, Mumbai, Maharashtra
    4.4/5fill iconfill iconfill iconfill iconhalf icon(27)
    View Number
    • calendar Member Since 14 Years
    • building Nature of Business Retailer
    • gst icon GST No. 27AAECM7911R1ZT

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    Features :

    • 8 universal input ( RTD. Thermocouple, 0-5Vdc, 0-20mA or 4-20 mA input signals.
    • Onboard 32000 reading per channel storage .
    • Parallel Port
    • Individual HI / LO alarm with 2 relay outputs
    • Additional relay outputs with optional Relay card
    • Networkable using Ethernet Port (optional)
    • Free PC Based Data Acquisition software
    • 21 CFR Part 11 (optional)
    • Front end IP65 protection
    • 3.5 inch TFT with Touch Screen Control
    • Onboard USB Port (Memory stick)

    Benefits :

    • Easy to configure analog input type with front end TFT touchscreen.
    • Logged data is secured as storage media is inside the unit.
    • Helps to connect any type of dot matrix printer.
    • Relay output for control or activating external alarms.
    • Individual Alarm relay (HI / LO) can be provided for all 16 channels.
    • Data accessible via LAN.
    • Not necessary to pay extra cost.
    • Logged data is secured and can not be manipulated by user.
    • Panel mounting enclosure which can sustain in harsh environment.
    • Easy to use icon menu for setting user parameters with touch interface.
    • Logged data can be downloaded to Memory stick and transfer to PC.



    Specifications

    CertificationCE Certified
    Voltage230V
    TypePaperless
    Warranty1 Year


    Catalogue


    Download Detail File : Click Here
