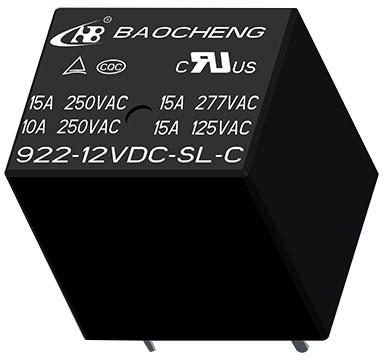

Baocheng export excellent power relay, telecom relays and automotive relays.
Â
· Normal 15A switching capabilityÂ
· Standard PCB layoutÂ
· Dielectric strength between coil and contact 1.5KV
· NO,NC,NO&NC contact form available
· Option for sealed and flux-tight type
· UL insulation grade
· Environmental friendly productÂ
· Outline dimension: 20.3 x 16.5 x 20.5mm
Baocheng supply electromagnetic relays, power relays, telecom relays and automotive relays. We wish to hand in hand with global customers to pursuit excellent quality and cast perfect products to share happiness life bring by technology.
Contact Form: | 1A, 1B, 1C |
Contact Material: | AgCdO, AgSnO2 |
Contact Load Capacity: | 1A:10A/250VAC;12A/125VAC;15A/250VAC,277VAC |
1B:10A/250VAC | |
1C:10A/250VAC;12A/125VAC;15A/250VAC,277VAC | |
Max. Switching Current: | 20A |
Max. Switching Power: | 4155VA/420W |
Mechanical Endurance: | 1*107OPS |
Electrical Endurance: | 1*105OPS |
Â
Technical Ratings | |
Insulation Resistance: | 100MΩ |
Dielectric Strength(Between coil&contact): | 1500VAC |
Operate Time (Max.): | 10ms |
Release Time (Max.): | 5ms |
Ambient Temperature: | -40 |
Terminal Type: | THT |
