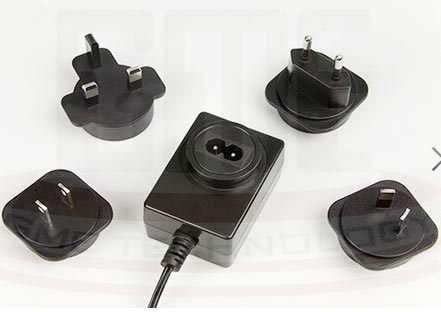

Switching power supply - ac pin interchangeable acdc adapter - 5w ~ 15w series type
meet rohs cec
universal input 100-240 vac
modified and custom design available
output with low ripple noise
1year warranty
electrical
dielectric 3000vac
burn-in test 100% full load
leakage current 0.25ma@2 pin
efficiency meet cec
mtbf 50000 hours
ac input
voltage range 90-264 vac
input frequency 47-63hz
input current 200ma max
inpush current 30a max
efficiency 65% min
dc output
voltage range 3.0v-24v
current range 0.01a-1.2a
inpush current +1% voltage max
mechanical
case dimension (l*w*h mm) l*w*h : 59.5*43*34.5.
