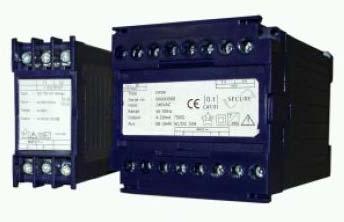

AC Power Transducer

Supply TypeSupplier, Retailer
Preferred Buyer Location All over the world

Our company shares glorious credentials with the eminent Suppliers of AC Power Transducers. Our Transducers are robust, safe and reliable. The Transducers offered by us are suitable to connect....

View More Details

Send Enquiry

Company Information

Adesh Electricals

Proddatur, Cuddapah, Andhra Pradesh

4.0/5

(1)

View Number

Member Since 10 Years
Nature of Business Retailer
GST No. 37AWDPJ9979N1ZG

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Our company shares glorious credentials with the eminent Suppliers of AC Power Transducers. Our Transducers are robust, safe and reliable. The Transducers offered by us are suitable to connect with supervisory control and data acquisition system telemetering, PLC indicating instruments and monitoring systems. Buyers can obtain these at reasonable rates from us.
More about AC Power Transducer : Secure make transducers come with unique galvanic isolation in both the inputs and fast response time of <3000ms at 99% output value.

Features :

Proven Technology- World wide Wide Compact And Most Reliable
Accurately class 0.5 as per iec 688; (optional 0.2 Class)
High Burden capacity - 750 ohms at 20 mA
fast response time<300 ms at 99 % output
Output short circuit and open circuit proof
AC/DC auxiliary power supply options
Low VA burden
Insulation level of 3.7 kV upto 300 V, 5.5 kV above 300 V
Impulse voltage : 5 KV at 1.2 /50 micro sec pulse
Operating temperature :- 10 degree to +55 degree
Ripple : < 1% for class 0.5 and < 0.5% for class 0.2
Dual output option available
Galvanic isolation is provided in both the outputs.

Complies to all international standards :
- Electrical measuring transducers : IEC 60688
- Safety regulations : IEC 61010
- Protection types : IEC 60529
- Ambient tests : IEC 60062-2-1/-2/-3/-6/-27
- Terminals : DIN43807
- Flammability : UL 94
- Electromagnetic compatibility : IEC 61000-4-2/-3/-4/-5/-6

Available Range :

AC voltage transducers
AC current transducer
Active power transducer
Reactive power transducer
Combined active and reactive power transducer (separate output for active & reactive)
Frequency transducer
Power factor transducer
DC voltage/current isolation transducer
Dual output option is available

Naming convention
- First Letter : D for DIN Rail
- Second Letter : Measuring Unit
- Third Letter : Addition to Measuring Unit, Ex : D : DC
- First Figure : No of measurin elements
- Second Figure : No. of connected wires (3 wire/4 wire)

Third figure : Type of Power supply
- Aux : 92-138 V AC
- Aux : 184-276 V AC
- Aux : 8-30 V (40V) DC
- 18--80V AC/DC
- 80-270V AC/DC

For ordering please specify :

Input voltage (Both Primary and Secondary)
Input current (Both Primary and Secondary)
Output :
Output volt or current
Single or dual
Accuracy class
Response time
Input power
Measuring power range*
Auxiliary power supply

Available Variants

Product	Description
Voltage
DU 120- DU 125	AC Voltage Transducer
DU 123- DUD 125	DC Voltage Transducer
Current
DI 120 - DI 125	AC Current Transducer
DID 123 - DID 125	DC Current Transducer
Frequency
DF 03, 04	2 Wire P-P, P-N
Power Factory
DP 123-125 1 Element 2 Wire	Active Power Transducers
DP 133-135 1 Element 3 Wire Balance Load	Active Power Transducers
DP 143-145 1Element 4 wire Banlance Load	Active Power Transducers
DP233-235 2 Element 3 wire Unbalance Load	Active Power Transducers
DP333-335 3 Element 3 or 4 wire Unbalance Load, without connected neutral	Active Power Transducers
DP343-345 3 Element 4 wire Unbalance Load	Active Power Transducers
DQ133-135 1 Element 3 wire Balance Load	Reactive Power Transducers
DQ233-235 2 Element 3 wire Unbalance Load	Reactive Power Transducers
DQ333-335 3 Element 4 wire Unbalance Load, without connected neutral	Reactive Power Transducers
DPQ 333-335 3 Element 3 or 4 wire Unbalance Load, without connected neutral	Combined Active and Reactive Power Transducers
DPQ 143-145 1 Element 4 wire (ph/n) , Balance Load	Combined Active and Reactive Power Transducers
DPQ 233-235 2 Element 3 wire Unbalance Load	Combined Active and Reactive Power Transducers
DPQ 333-335 3 Element 3 or 4 wire Unbalance Load, without connected neutral	Combined Active and Reactive Power Transducers
DPQ 333-335 3 Element 4 wire Unbalanced Load	Combined Active and Reactive Power Transducers

Technical Specification

Voltage Transducer -DU (AC)/DUD(DU)
DU 120		DU 121-125		DUD 123-125
Input Voltage	0.60....525V	Input Voltage	0-60....600V	Input Voltage	0-60mV...0
(Vn)		(Vn)			600V
Burden	<1.2VA	Burden	1mAxVn	Input Resistance	40k?/V measuring range 0-0.5V 10k?/V measuring range 0-600V
Frequency Range	50,60 Hz	Frequency Range	50,60 Hz	-	-
Overload	1.2x Vn continuously, Varistors Protection 1.5Vn	Overload 1.2x Vn continuously, Varistors Protecion 1.5 Vn	-	-	-
Current Transducers DI-(AC)/ DID (DC)
DI 120		DI 121-125		DPF 13,14
Input Voltage (Vn)	1,2,5 and 6A	Input Voltage (Vn)	1,2,5A	Input current	0-1mA...0-200mA
Burden	<1.2VA	Burden	<0.2VA	Shunt voltage	Max 0.15 V
Frequency Range	50,60Hz	Frequency Range	50,60Hz	-	-
Overload	2xIn continuously, 10x In for 10 sec	Overload	xIn continuously, 10x In for 10 sec	-	-
Power Transducers		Frequency Transducers		Power Factor Transducer
Active Power / Reactive Power and Active Reactive Combined ; DP/DQ/ DPQ		DF 03,04		DPF 13,14
Input Voltage (Vn)	100 to 600 V	Input Voltage	60....500V	Input Current	110...5000V(40-120%)
Input Current	1,2,5, A	Working Range	(40-120)xVn	Input current	1,2,5 A
Burden	Voltage: 1 mA/ PhasexVn Current: <0.1 VA/ Phase	Burden	<0.6 mAxVn	Burden	Voltage: <0.6 mA/ PhasexVn Current: <0.1 VA/Phase
Frequency	50,60Hz	Measuring 45-55Hz, 48-52	45-55Hz, 48-52	Measuring Range	Cap0.5-
Range		Range	Hz 55-65Hz, 58-62Hz		Hz 55-65Hz, 58-62Hz
Overload	1.2x Vn continuously, Varistors Protection 1.5 Vn 2xIn continuously, 10x In for 10 sec 40 xIn for 1 sec	-	-	-	-

General Specifications

Ingress protection	IP51 (Case seal); IP20 (Terminal part)
Insulation class	3.7 kV at Vn< 300 V; 5.5 kVat Vn > 300V
Response time	<300 m sec
Impulse voltage	5 kV at 1.2/ 50 microsec
Max open circuit output voltage	20 V
Temperature coefficient	<0.1 % / 10 C
Temperature	-20^o C to +65^oC (Function) -10^oC to +55^oC (Operating) -65^oC to + 80^oC (Storage)
Casing material	Plastic
Max conductor size at terminals	2x2.5 mm2
