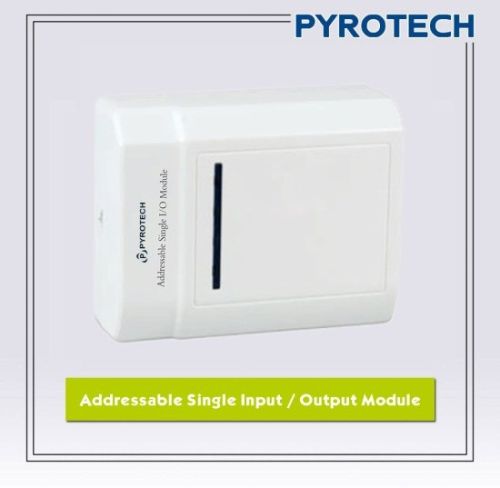

Addressable Single Input / Output Module

The PY-I/0-301-A Addressable Single Input/Output Module is characterized as one input or output volt-free relay and control module. The unit is normally used for overriding equipment such as lift return, door holder, smoke extract fans, air handling unit, auto Dialler to the fire brigade, BMS, etc. The unit has a built-in feedback signal feature, according to the pre-configured interface module command fire scenario, the alarm controller sends out a start command to the equipment required to start. After receiving the command, the output module enables its relay to change state. Once the module is under control and operated a confirmation signal will be sent back to the alarm controller. In addition, the unit incorporates an intelligent processor that provides automatic monitoring for both open and short circuits of the input signal line. The unit is aesthetically pleasing with an unobtrusive design that will complement modern building designs and its plug-in type assembles make installation and maintenance more convenient to the installer. The unit is compatible with the PYCP-4A Analogue Intelligent Fire Alarm Control Panel. Features Built-in MCU processor and digital addressing 24Vdc/3A Output relay contact and Control module Input Fire or Supervisory signal configuration LED status indicator
