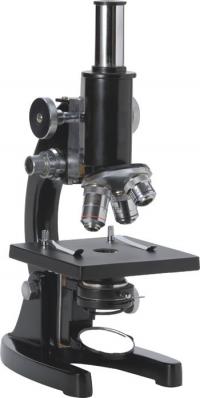

IDEAL FOR THE CLASSROOM

robust, reliable metal construction and excellent optical performance.

Extremely simple to use, this instrument is ideal for the examination of everyday objects in fascinating yet understandable detail. Highly recommended forPrimary Science Education and Field Study Centres.

Black stoving finish and hard instrumental chromium plating will accent any classroom environment.

BodyMONOCULAR body with horse shoe shaped base hinged type, versatile designed inclinable to 90o assembled from DIE-CAST parts.

Viewing TubeMECHANICAL tube of length 160+1mm.

EyepieceH10x & H15x.

NosepieceTRIPLE revolving nosepiece with positive centering and click stop.

Objectives

5x, 10x & 45x (SL).

StageFIXED square stage of size 120mm X 120mm with Phosphorus stage clips.

FocusingRACK AND PINION knob provided for sensitive focusing.

KnobsSEPARATE coarse and fine motion knobs with very precise & accurate graduated fine motion reading to 0.002mm, for fine adjustment and a stopper to prevent damage to glass microslides and objective lenses.

CondenserTWO LENS ABBE condenser NA 1.25 with continuously variable iris diaphragm and swing-out filter holder.

IlluminationSTANDARD plano concave mirror 50 mm dia. in fork for natural light, replaceable by a substage microscope lamp.

Magnification50x-675x.

Packaging contentsPacked in shockproof Styrofoam moulded box or in a plywood cabinet having provision for placing eyepieces and objectives and dust cover.

Accessories (optional)

Detachable graduated mechanical stage.

Substage illuminator ML-1. Workable on 220 volts direct.

Huyenian eyepiece H5x or H10x or H15x.

Pointer Eyepiece 5x or 10x or 15x.

Oil immersion 100x (SL) NA 1.25.
