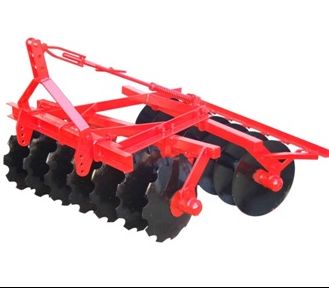

Heavily weighted gangs provide excellent stability - ideal for 35 HP to 100 HP tractors. Suitable for soft and medium soil conditions. Used in open field working for shattering of clods, preparation of soil for sowing and burial of organic substances and crop residue. Easy gang adjustment to get the perfect level finish
| Description | AGMODH-12 | AGMODH-14 | AGMODH-16 | AGMODH-18 | AGMODH-20 | AGMODH-22 | AGMODH-24 |
|---|---|---|---|---|---|---|---|
| Tractor Power(HP) | 30-40 | 40-50 | 50-60 | 60-70 | 70-80 | 80-90 | 90-100 |
| Frame (mm) | 75X75X10T Angle frame with 100x50 Front Channel | ||||||
| Gang Bolt/Axle | 32mm Solid square rod | ||||||
| No.of Discs | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
| Type of Disc | Notched Disc in Front and plain Disc in Rear Gang | ||||||
| Width of cut (mm) | 1420 | 1635 | 1852 | 2068 | 2285 | 2502 | 2718 |
| Distance between Disc (mm) | 228 | ||||||
| Disc Diameter (mm) | 22x4mm (T) | ||||||
| Weight (approx.) | 390 kg | 430 kg | 500 kg | 575 kg | 615 kg | 676 kg | 731 kg |
