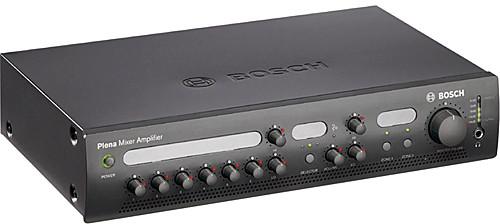

All-in-one Mixer Amplifier I

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

he PLENA all-in-one mixer amplifier is a versatile solution for public address, emergency announcements and back-ground-music (BGM) requirements. This high-performance device is easy to install and....

View More Details

Send Enquiry

Company Information

Fire Projects Pvt Ltd

Chanakyapuri, Ahmedabad, Gujarat

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Typical applications of PLENA all-in-one 180W mixer amplifier include use in supermarkets, restaurants, schools, retail chains, canteens, places of worship, gymnasiums etc where BGM provides the right atmosphere, at the same time announcements can be made clearly and with ease.

The All-in-one amplifier is mixer amplifier with inbuilt music source.The All‑in‑one unit can provide hours of uninterrupted music from USB or SD flash memory.The unit also has a built in FM tuner with presets. To ensure for optimum performance, the All‑in‑one unit has no moving parts, such as hard drives that can fail or wear out. The unit is supplied with an IR remote control for controlling the music source.The unit can be rack mounted by using the brackets that can be procured seperately.

feature

Two Zone output
4 microphone inputs with independent level control
USB drive and SD card for MP3 playback
Built-in FM tuner with preset memories
100V/Telephone input with priority and VOX
Parts included : All-in-one mixer amplifier, Power cord, Remote control for Music source, FM Antenna with connector
specification
Electrical:
- Mains Power Supply: Voltage 230 VAC, ±10%, 50 Hz
- Inrush Current PLN-1AIO090-IN: 13A
- Battery power supply Voltage: 24VDC ±15%
- Current: 9A
Performance:
- Max/Rated Output Power: 270W/180W
- Frequency response: 80Hz to 18kHz
- Distortion: 5 kOhm (line)
- S/N at rated power: ≥60 dB (mic); 65 dB (line)
- CMRR (mic.): >40 dB
- Phantom power supply: 9 V via 1.2 kohm (mic)
- Speech filter: -3 dB @ 315 Hz
Music Input:
- Connector: Cinch, stereo converted to mono
- Sensitivity: 200 mV to 300 mV
- Impedance: 22 kohm
- S/N at rated power: ≥70 dB
