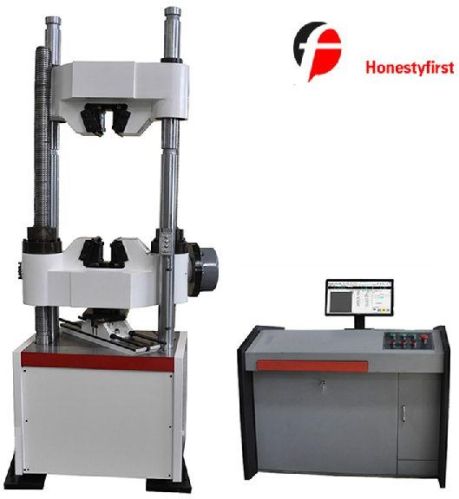

ALUMINUM BAR TENSILE TESTING EQUIPMENT

₹ 4.48 Cr / Set

MOQ1 Set(s)
CEISO
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Technical specification model waw-300c waw-600c waw-1000c max. Load 300kn 600kn 1000kn measuring range 6-300kn 12-600kn 20kn-1000kn loadã�ï¿½ã�â± 1% of indicated value displacement....

Company Information

Jinan Honesty First Test Equipment Co.,Ltd

Member Since 9 Years
Nature of Business Supplier
Year of Establishment 2008

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Technical specification
model waw-300c waw-600c waw-1000c
max. Load 300kn 600kn 1000kn
measuring range 6-300kn 12-600kn 20kn-1000kn
loadã�ï¿½ã�â± 1% of indicated value
displacement resolution 0.01mm
piston stroke 250mm
tension test space (including piston stroke) 800mm 850mm
compression test space 700mm 750mm
diameter of round specimen
thickness of flat specimen 0-15mm 0-30mm 0-40mm
max. Width of flat specimen 80mm 80mm 120mm
clamping method built-in hydraulic clamp
diameter of cutting specimen 10mm
platen size 200x200mm
3 points bending fixture space 450mm
the width of bending anvil 140mm
support column diameter
diameter of load-frame 1100x650x2325mm 1225x750x2640mm
diameter of control cabinet 1140x700x930mm
weight 2800kg 3000kg 4500kg
power supply three phases ac 380v 50hz
