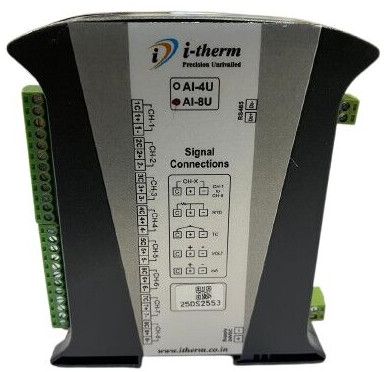

Analog Input Module, Power : 24VDC

₹ 6,500 - ₹ 8,500 / Piece

Operating Temperature0 TO 55 C
Power24VDC
Voltage24VDC
ApplicationIt Is Used To Interface Analog Sensors With The Control System By Converting Real-world Analog Signa
Supply TypeExporter, Supplier
Preferred Buyer Location All over the world

Company Information

4.5/5

Ask for more detail from the seller

Report incorrect details

Power24VDC
ApplicationIt Is Used To Interface Analog Sensors With The Control System By Converting Real-world Analog Signa
FeatureReliability
Voltage24VDC
Operating Temperature0 TO 55 C
TypeAnalog Input Modules
Channel4,8
Country of OriginIndia
Input rangesDigital Input Modules
ModbusRS

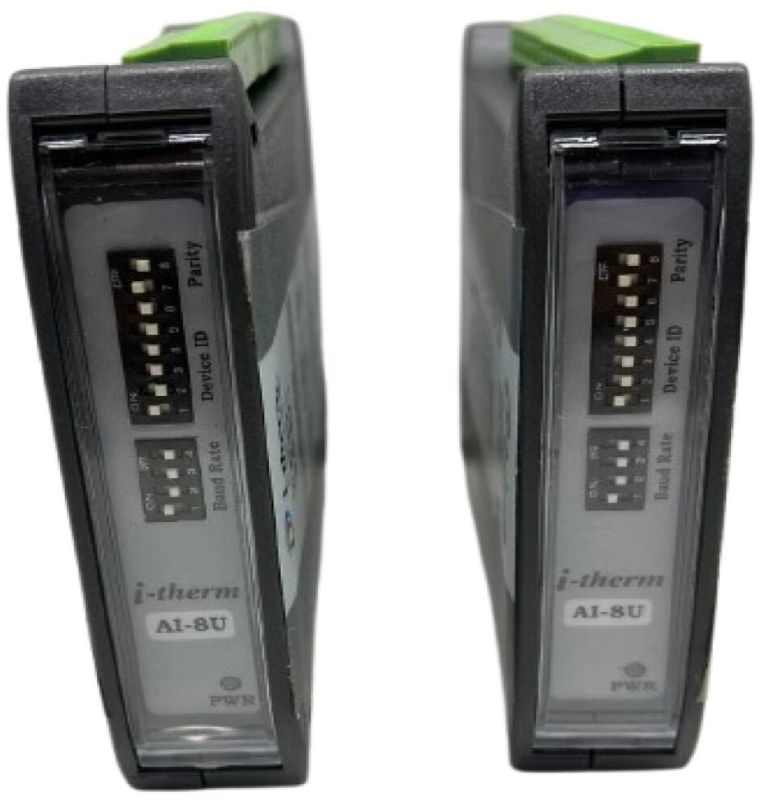

Analog Input Module AI 8U

8 Analog Input Channel
Input Type: Universal DC, mA, RTD, Thermocouple
Automatic CJC for Thermocouple & LRC for RTD Input
User settable selectable range for DC V/mV/mA Inputs
2 wire Half Duplex, RS 485 Serial Communication Port
Industry Standard MODBUS RTU Protocol with Programmable ID, Baud Rate & Parity
Compact Din Rail Mount Enclosure 22.5 (W) x 101 (H) x 119 (D)
Wide Voltage Supply 18 - 32 VDC (24 V DC Nominal)
Three Way Isolation eliminates Potential ground loops between Power, Inputs & RS 485 Serial Port
Programmable soak timer
Four different start modes for soak timer
Battery Backup for Soak Timer
Timer Hold Strategy
Settable soak time delay
Time Delay for Compressor
Universal supply voltage ranges from 90 to 270 VAC
Supply 24VDC Available on Request
