Arduino Leonardo SMD

Listing ID #4196336

Get Latest Price

Analog Input Pins12
Clock Speed16 MHz
Width53.3 mm
DC Current per I/O Pin40mA
Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Analog Input Pins 12
Clock Speed 16 MHz
EEPROM 1KB (ATmega32u4)
Weight 20 g
Microcontroller ATmega32u4 (SMD)
Width 53.3 mm
Digital I/O Pins 20
Length 68.6 mm
Input Voltage (limit) 6-20V
SRAM 2.5KB (ATmega32u4)
Flash Memory 32KB (ATmega32u4) of which 4KB used by bootloader
PWM Digital I/O Pins 7
Operating Voltage 5V
DC Current per I/O Pin 40mA
Input Voltage (recommended) 7-12V
DC Current for 3.3V Pin 50mA

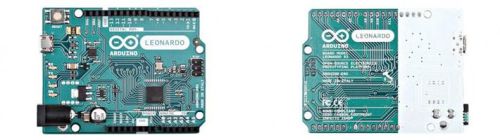

The Arduino Leonardo is a microcontroller board based on the ATmega32u4. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The Leonardo differs from all preceding boards in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Leonardo to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.
