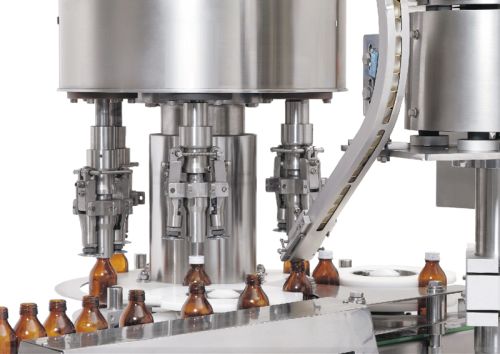

Automatic Capping Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Automatic Capping machine is designed for sealing various types of caps like ROPP, Screw, Press on, CRC on different type of bottles. Sealing head rotates continuously with up & down mechanism driven by suitable drive. Bottles with caps are to be placed on bottle loading platform. Sealing of the cap is done on the machine by suitable sealing head. Sturdy & Rugged design Compact design Can be used for Screw / ROPP / press on type cap with Capping head as change part Suitable for different type of bottles

View More Details

Send Enquiry

Company Information

aquapack solutions

Ambawadi, Ahmedabad, Gujarat

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Technical Specification:

Model	APC – 40 S	APC – 80 S	APC – 120 S	APC – 150 S
No. of Heads	1	4	6	8
Output	40 BPM	80 BPM	120 BPM	150 BPM
Type of Caps	ROPP/SCREW /CRC/ PRESS ON
Bottle Diameter	25 mm to 110 mm
Bottle Height	50 mm to 300 mm
Neck Diameter	20 mm to 42 mm
Direction	Left to Right (Direction of bottle movement)
Electrical Load	2 HP/ 2HP, 415 V AC, 3 phase with neutral
Conveyor Size	Length: 2450 mm Working Height: 850 mm ± 50 mm
Overall Dimensions	1100 mm (W) x 1350 mm (L) x 2600 mm (H)
