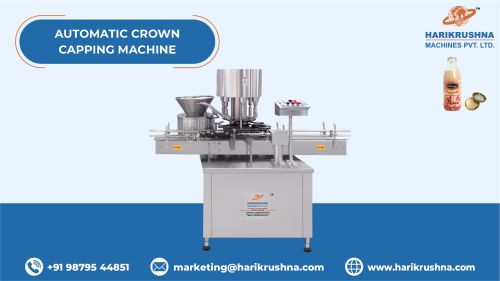

Crown Capping Machine
Crown capping machines securely crimp aluminium caps onto glass bottles with up to 120 bottles per minute output speed. Automatic Crown Cap Sealing Machine models start from single, four, six and eight-head or more per customer requirements. Our Crown Capping Machine suits various industries, including dairy, pharmaceutical, beverage, and chemical, for small and large production batches. The Automatic Crown Cap Sealing System consists of a main structure, product transmission belt, Safety acrylic cover (OPTIONAL), star plate & guide, single nos. of crown cap sealing head, Vibratory Bowl, cap delivery chute, electrical panel, pneumatic components, motor, sensors, AC drive & mains ON/OFF.Filled bottles move along the conveyor belt and enter the in-feed star wheel via the in-feed worm. As they pass through the star wheel, they pick up caps from the delivery chute separately. Descending rotary sealing heads apply the desired pressure to the bottlenecks. A rotating scramble positions the caps accurately, sealing them in a programmed roll-in fashion. When the chute fills with caps, the rotating unscramble drive disengages to prevent cap damage. After that, The rotating sealing head activates the sealing roller, with a sealing cam facilitating the movement of the sealing and threading rollers. Finally, a star wheel discharges the sealed bottles onto the conveyor.
Crown Cap Sealing Machine Manufacturer & Exporter in IndiaHarikrushna Machines Pvt. Ltd. (HMPL) is an ISO 9001:2015 & CE-certified Automatic Crown Capping Machine manufacturer and exporter in Ahmedabad, Gujarat, India. With over 25 years of experience in
| # | Model | Head | Output Speed |
| 1 | HMPL-CCM-1 | 1 | 30 to 40 BPM |
| 2 | HMPL-CCM-4 | 4 | 40 to 60 BPM |
| 3 | HMPL-CCM-6 | 6 | 60 to 80 BPM |
| 4 | HMPL-CCM-8 | 8 | 80 to 100 BPM |
| 5 | HMPL-CCM-10 | 10 | 100 to 120 BPM |
The filled bottles are moved on the conveyor belt and fed into an in-feed star wheel. While moving in-feed star wheel, bottles pick up crowns one by one from the delivery chute & at last go for the final sealing Head. The pressing & sealing is done in a programmed roll-on-manner, accurate positioned of the crown is done mechanically using a rotating unscramble, to direct the crown correctly into the chute, when the chute is filled up the rotating unscramble drive is disengaged, hence, there is no chance to damage of caps. The pressing & sealing take place due to the rotating sealing head and transfer movement of sealing rollers due to the sealing cam. The sealed bottles are discharged by the existing star wheel on the conveyor.
| Model | HMPL-CCM-1 |
| Bottle Size | 10 ml to 1000 ml |
| Bottle Neck Size | Specify by Customer |
| Bottle MOC | Glass Bottles |
| Crown Cap Size | Specify by Customer |
| Cap Feeding System | Vibratory Bowl with Chute Suitable Cap |
| Capping Head Type | Crown Cap |
| Output Speed | 30 to 40 Bottles/Minute (Depending on cap and product size) |
| Direction of Movement | Left to Right |
| No. of Sealing Head | 1 No. |
| Power Supply | 1 HP / Three Phase / 440 V AC / 50 Hz |
| Main Motor & Gear Box | Automotive Make |
| Main Motor | AC Drive Delta Make |
| Air Consumption | 6 to 8 Kg/Cm2 |
| Height of Conveyor | 850 ± 50 mm Adjustable |
| Net Weight | Approx. 350 Kg |
| Change Parts Required | (A) Bottle: Star Wheel, Back guide.
(B) Cap: Vibratory bowl, Delivery chute & Die. |
