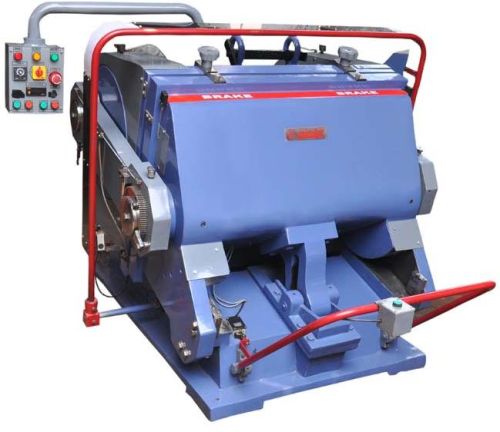

Die Cutting and Creasing Machine, Color : Violet

Driven TypeElecric
Automatic GradeAutomatic
ConditionNew
Number Of FlowerAutomatic Die Cutting And Creasing Machine
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location India, Bangladesh, Nepal, Saudi Ara bia

We offer a range of Die Cutting and Creasing Machine, which is in high demand for its superior performance and robustness. Clients can avail Die Cutting and Creasing Machine at competitive price and....

View More Details

Send Enquiry

Product Details

We offer a range of Die Cutting and Creasing Machine, which is in high demand for its superior performance and robustness. Clients can avail Die Cutting and Creasing Machine at competitive price and secured packing. We are a prominent Die Cutting and Creasing Machine Manufcaturer and Supplier based in India.

Features

Specially designed for heavy jobs of cutting, creasing and embossing
Die Cutting Embossing & Creasing Machine
Heavy duty cutting platen die cutter press
Provided with an electro-magnetic clutch 64 brake

Suitable For

Creasing, Cutting & punching of card board as well as corrugated boxes

Specifications

Size	20" x 26"	22" x 32"	25" x 37"	32" x 42"	36" x 50"	42" x 62"
Platen Size	23" x 29"	25" x 35"	28" x 40"	35" x 45"	39" x 53"	45" x 65"
Impressions / hr. Min	1400	1400	1200	1000	1000	900
Impressions / hr. Max	1600	1600	1400	1200	1200	1000
Power required	3.0 H.P.	3.0 H.P.	5.0 H.P.	7.5 H.P.	7.5 H.P.	10.0 H.P.
Wt. Approx	2.6 Ton	3.4 Ton	4.5 Ton	6.0 Ton	7.0 Ton	12.0 Ton
Area reqd. in inches	75x60x64	75x68x60	80x74x62	92x78x68	92x84x72	98x96x84
