AUTOMATIC ELECTRONIC DRAIN VALVES

INTRODUCTION
AIPL Super Efficient Automatic Drain Valve For Condensate Removal.
In Compressed Air Systems, Moisture is an Unavoidable Critical Element which is absorbed from the atmospheric air. The acumulation of moisture will be very very large. The compressed air along with water causes costly-
Damage within few minutes to Pneumatic Equipments / Tools

To reduce the maintenance cost in the Pneumatic controls systems "AIPL" has developed and "AIPL AUTOMATIC DRAIN VALVE" based on solid state Electronic Adjustable Timer.

APPLICATION AREAS OF AUTOMATIC CONDENSATE DRAIN VALVES

Anywhere - Everywhere Compressed Air is being used in Industries, for Moisture Condenstate Removal Automatically regularly to improve life of Pneumatic equipments.

1. Efficient
2. Precise
3. Economical
4. Where to be used? AIPL Automatic drains for condenstate removal.

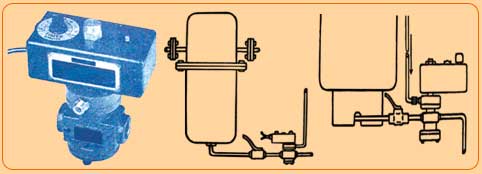

Filters, Separators, After Cooler, Receiver Tanks, Air Dryers, Pneumatic Tools - Controls Equipments & any other Pneumatic Equipment Machine systems.
You need an Automatic Drainage System Condensate Removal regularly without human error to save energy - power.

SPECIFICATIONS

AIPL Electronic Condensate Drain Valve.

1/8" Pilot air operated - High discharge type with Large discharge port and on line type. Complete range of Automatic Condensate Drain Valve - Precise & Economical.

1. Cycle Time : 1 to 45 / 90 Min.
   (Adjustable).
2. Valve open time : 3.5 - 4 seconds.
3. Supply Voltage : 220 V ± 15 % (or as per your requirements).
4. Power Consumption Temp. : 6 Watts.
5. Max. Ambient Temp. : 75° C.
6. Max. Fluid Temp. : 70° C.

Maximum Discharge Per Cycle

1. 1/2" Outlet Pilot operated - 400 ml.
2. 1" Outlet Pilot operated - 1550 ml (with build in SS Stainer).
3. Max. Test pressure : 16 kg/cm² - up - 10 kg/cm²
4. Min. Pilot Pressure : 2.5 Kg/cm².
5. Valve Housing - Aluminium.
6. Seals - Nitrile.

Timers Body - ABS Rust Proof

1. Solenoid Coil - Encapsulated.
2. Power Reduction - By Transformer (Circuit - Thermo Sealed).
3. Control Unit - Rotatable 360°.
4. Internal Parts - SS / Brass Rust Proof.
