Automatic Fly Ash Brick Making Machine, Brand Name : HG

We are offering automatic fly ash brick making machine .
Detailed product description
qt8-15 fly ash brick making machine
1.block tech brick blocks
2.produce all kinds of blocks
3.competitive price machine

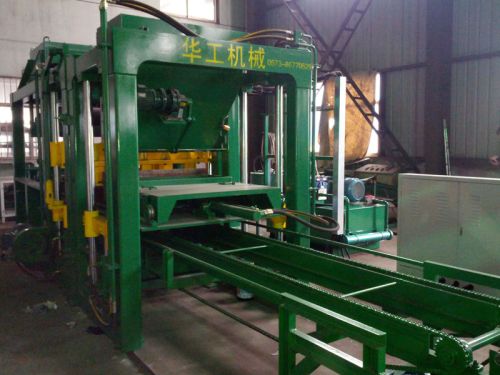

qt8-15 fly ash block making machine and brick making machine
1. Special material storing system: the material storing unit can move forward and after. And it is very easy to clean the material adding hopper. The integrative design can ensure the accuracy of material supply, so the blocks/bricks can have the same density.
2. Special material feeding system: it adopts the technology of 360 multi-shaft rotating and compusory feeding,work quickly. Under the help of the material-feeding bar, the material in the mould box can be instantaneously spread evenly and meet the requirement of being quick but even.
3. Integrated oil system: it adopts the model of international standard. So the system has the specialties of long lifespan, good weather resistance and low energy consumption. Importing important components is another guarantee of good quality. The reasonable design of oil line can make the energy utilization rate reach 90%.
4. Intellectualized plc control system: it has a human-machine interface which means the operator can totally control the machine without any training. It can also automatically operate, analyze compaction, adjust material feeding and diagnose the malfunction. It is easy and safe to use.
it's designed for making color pavement brick, grass planting brick, slope-protection
brick etc.as long as you add a set of color material system.â it could lay the material twice automatically.
qt8-15 technology parameter
outside size 9000×1800×2700(mm)
weight 11000kg
rated pressure 21mp
vibration frequency 50hz;3000-4000r/min
pallet size 1100×560×20(mm)
power 45kw
standard brick 40pcs/mould (240×115×53) 76800pcs/8 hours
multi-hole brick 20pcs/mould (240×115×90) 38400pcs/8 hours
hollow brick 8pcs/mould (390×190×190)12600pcs/8 hours
advance vibrating technology,feeding and forming by different vibrating mode assure high quality of feeding and forming.
this machine is suitable for customers with medium amount of investment.
our machine got the highest output compared to similars !!!!
