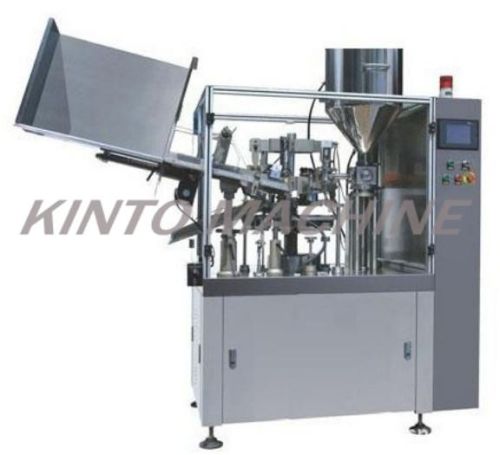

Automatic Tube Filling Machine

We are offering automatic tube filling and sealing machine.
1. This machine is suitable for plastic tube, aluminum tube, lead tube
2. This machine adopt plc control system, and it’s easy to operate with a large touch screen, operates in a high-speed and stable
3. This machine can fill all kinds of paste into the tube, and automatically complete the tube washing, filling, sealing and print batch number, production date, etc
4. Adopt servo system, easy and convenient to set the filling volume
5. Equipped with security system, the machine will shut down when the door is opened, no tube no filling
6. The technique of the heating system ensure the product’s beauty after sealing
item no. ktgz-s1
power supply 380 or 220v
capacity ≤50pcsmin
filling volume 5ml-250ml
filling accuracy ≤±1%
tube diameter φ10—φ50mm
tube length ≤220mm
air pressure 0.55-0.65mpa
dimension 1900×1000×1900mm
weight 850kg
