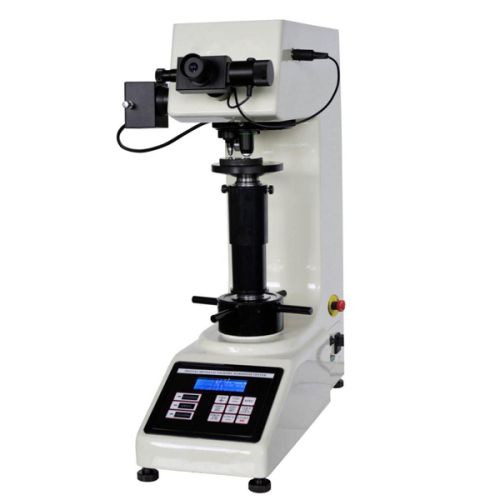

Automatic Turret Digital Macro Vickers Hardness Tester Meter DV-5/10/30/50A

Get Latest Price

MOQ1 Set(s)
Brand NameEBP
Dwell Time0~60s
Data OutputBuilt-in Printer, RS232 Interface
Loading MethodAutomatic (Loading/Dwell/Unloading)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

EBPu Electromechanical Equipment (Zhejiang) Co., Ltd.

Wenling

View Number

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2017

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Brand NameEBP
Dwell Time0~60s
Power220V 50Hz
Test Range1HV-2967HV
X-Y Test TableSize: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm
Loading MethodAutomatic (Loading/Dwell/Unloading)
Data OutputBuilt-in Printer, RS232 Interface
ApplicationTest Material Hardness
Throat130mm
Light SourceHalogen Lamp
Max. Height of Specimen170mm
Execute StandardISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2

Test force:
DV-5A: 0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf
DV-10A: 0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf
DV-30A: 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf
DV-50A: 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf, 50kgf
Introduction:
Digital Macro Vickers hardness tester is a high-tech and new product combining the optics, mechanic and electrics features. It adopts load cell control system, improves the precision of the test force and the repeatability and stability of the indicating value. With digital measuring eyepiece, no need for checking the table or inputting the diagonal of the indentation, it can directly shows the test force, indentation length, dwell time, test numbers, conversion scale, date and time. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and shows on the screen.
