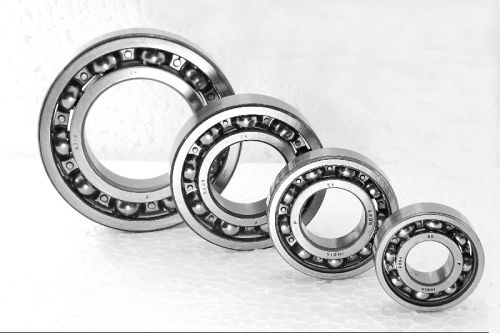

Ball Bearings

Sold By : Kan`sara Eng P Ltd

Product Specifications

Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

Ball bearings are a rolling element bearing which provide the separation between bearing races by using balls. Ball bearings effectively decrease the rotational friction and loads. We design ball bearings in many types such as angular contact ball bearing, axial and deep groove ball bearings. Ball bearings are manufactured by stainless steel, chrome steel and ceramic as raw materials. Caged, self aligning, flanged, rows are main types of ball bearings as construction prospective and also widely used in several different applications. Some more applications of ball bearings are as hard drive bearings, aerospace bearings, skateboard wheels bearings and many more.

We offer a wide range of ball bearings with distinct diameters of balls for different applications. We manufacture ball bearings according to the customer’s requirements with the help of our design engineers and manufacturing team. We offer ball bearings which have diameter range from 19mm to 30 mm.

SNo.

Bearing No.

BOUNDARY DIMENSIONS (in m.m.)
d	D	B

Load Capacity (Newton's)
STATIC CO(KN)	DYNAMIC C(KN)

LIMITING SPEED (R.P.M.)
Grease	Oil

Approx Weight (Kg.)

1	LS 8	19.05	47.625	14.287	6.6	12.8	16000	18000	0.12
2	6204	20	47	14	6.6	12.8	16000	18000	0.117
3	6304	20	52	15	7.9	15.9	14000	17000	0.151
4	6005	25	47	12	5.9	10.1	15000	18000	0.08
5	6205	25	52	15	7.8	14	13000	15000	0.132
6	6305	25	62	17	11.6	22.5	11000	14000	0.248
7	TB 25751 (SNR=AB 40559)	25	75	17	17.3	32.6	9500	11000	0.34
8	6405	25	80	21	19.3	35.8	9000	11000	0.53
9	62/28	28	58	16	9.4	16	12000	14000	0.171
10	6006	30	55	13	8.3	13.7	13000	15000	0.116
11	6206	30	62	16	11.2	19.4	11000	13000	0.197
12	6306	30	72	19	16	28.1	9000	11000	0.373
13	6406	30	90	23	23.6	43.6	8500	10000	0.74
14	MS 12	31.75	79.375	22.225	17.9	33.2	9800	13200	0.484
15	6007	35	62	14	10.03	16	12000	14000	0.156
16	6207	35	72	17	15.2	25.7	9800	11000	0.295
17	88507 (JB 1030 W)	35	72	23	15.2	25.7	9800	11000	0.342
18	6307	35	80	21	19.2	33.4	8500	10000	0.472
19	6008	40	68	15	11.5	16.8	10000	12000	0.19
20	BL 208	40	80	18	25.9	31.5	8500	10000	0.4
21	6208	40	80	18	18.7	30.8	8700	10000	0.402
22	6308	40	90	23	26.2	44.5	7800	9200	0.627
23	6209/C3	45	85	19	20.3	32.7	7800	9200	0.41
24	88509	45	85	27	20.5	32.7	7800	9200	0.5
25	6309	45	100	25	31.7	52.8	7000	8200	0.82
26	6010	50	80	16	16.6	21.7	8400	9800	0.293
27	6210	50	90	20	23.2	35	7100	8300	0.47
28	6310	50	110	27	37.7	61.7	6400	7500	1.078
29	6211	55	100	21	29.2	43.4	6400	7600	0.625
30	88511	55	100	21	29.2	43.4	6400	7600	0.75
31	6311	55	120	29	45	71.6	5800	6800	1.353
32	6012	60	95	18	23.2	29.6	6700	8000	0.41
33	6212	60	110	22	35.8	52.5	6000	7000	0.76
34	6013	65	100	18	25	30.7	6500	7700	0.444
35	6213	65	120	23	40	57.2	5500	6500	0.99
36	16014	70	110	13	24.8	28.1	6000	7000	0.43
37	6214	70	125	24	45	60.5	5000	6000	1.04
38	6015	75	115	20	33	39.7	5700	6700	0.64
39	6215	75	130	25	49.3	66.1	4800	5600	1.16
40	6315	75	160	37	76.5	114	4300	5000	3
BALL BEARINGS (OTHERS)
44	MSN14	44.45	117.475	28.575	32.5	56.1	7000	8200	1.45
45	88509 A	45	87	49	20.5	32.7	7800	-	0.6
46	88511 A	55	102	49.7	29.2	43.6	6300	-	0.9
