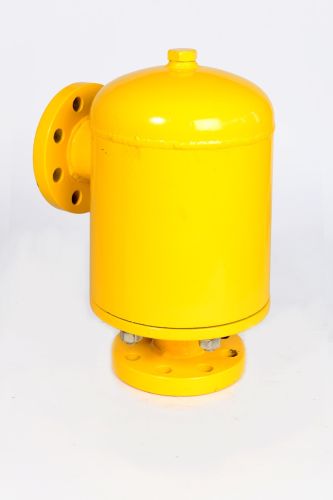

Ball Float Air Vent Valves 15 Nb To 200 Nb

BEP Engineering Pvt. Ltd. is the leading Manufacturer of Ball Float Air Vent Valves.

These are designed for automatic removal of air and non-condensable gases from liquid lines. Our Air Vent Valves are suitable for venting of Water / Oil pipelines, process equipment and storage tanks.

Working:

The gas accumulated in the upper part of the valve installed at the highest point creates the pressure and thereby lowers the float which opens the outlet orifice & discharges the gas to the atmosphere.

The plug valve type discharge orifice of vent valve ensures efficient & maintenance free operation with zero leakage.

Technical Specifications:


Pressure Range: Up to 63 kg/cm2
Sizes: 15 NB to 200 NB
End Conn: Screwed / Socket Weld / Flanged

Features:


Simple Sturdy Design
Less Moving Parts
Proportionate Discharge Capacity
Suitable of very low differential pressure
Available various models

Applications:


For Diesel / Petrol / Oil Pipelines
For Chilled Water / Hot Water & Fire Hydrant Lines
For Brine
For Various Chemical Lines
For Storage Tank & Process Equipments
