Barrel Pump, For Industrial, Power : Electric

ApplicationIndustrial
Country of OriginIndia
Number Of FlowerBarrel Pumps
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

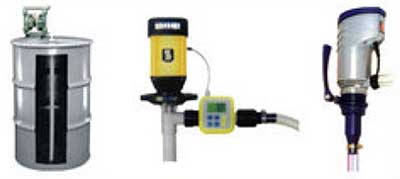

We are one of the renowned Exporters of Barrel Pump. The Electric Barrel Pump is used for transferring viscous liquid like Molasses Syrup, Liquid Chocolate, Honey, Liquid Soap, Wax, Paints, Gasoline, Glues, Resins, and Shampoos and so on. Our Air Driven Barrel Pump has self priming construction that is easy to handle and maintain. Air Motor Barrel Pump is light in weight thus it is portable and saves both time and labor cost. First Photograph is for AODD Pump as barrel empty pump. Secong Photgraph is for electrically operated Barrel pump. Third Photograph for Air Motor Barrel Pump.

View More Details

Send Enquiry

Product Details

Range

Model	Motor HP	Wt	Max Flow	Max Head	Max Viscosity
Low Viscous Drum Pump - Electric Driven, Nno Flp
MOA 40E/0.5	350 W/1 Phase	8 Kg	60 lpm	8 M.	150 cps
MOA 40E/1.0	700 W/1 Phase	8 Kg	70 lpm	12 M.	300 cps
MOA 40E/1.5	1050 W/1 Phase	8 Kg	100 lpm	18 M..	500 cps
Low Viscous Drum Pump - Air Driven
MOA 40A/0.6	0.6 HP/18 CFM@3-6 Bar	6 Kg	90 lpm	15 M.	300 cps
High Viscous Drum Pump - Electric Driven, Non Flp
MOA 40 E HVS/1.0	1.0 HP/960 RPM/3 Phase	18 Kg	50 Kg/Min.	8 Bar	10000 cps
MOA 40E HVS/ 1.5	1.5 HP/960 RPM/3 Phase	18 Kg	30 Kg/Min.	8 Bar	3000 cps
MOA 40E HVS/ 2.0	2.0 HP/960 RPM / 3Phase	24 Kg	15 Kg/Min.	8 Bar	30000 cps
High Viscous Drum Pump - Air Driven
MOA 40 HVS/1.2	1.2 HP/30 CFM@3-6 Bar	12 Kg	30 Kg/Min.	8 M.	15000 cps
