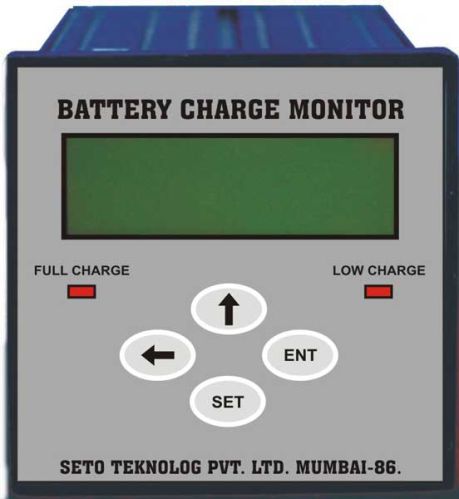

Battery Charge Monitor BCM-01

We Offer Battery Charge Monitor BCM-01 is a micro controller based unit, which is used for monitoring the charge level of stationary battery systems. This unit measures the voltage drop across a shunt through which the battery is connected to the charger and the load. The unit displays the charge remaining on the battery in terms of Ampere- Hour (AH) capacity as well as remaining time for which the battery can supply rated current. The unit incorporates precision analog and digital circuits and has the following features
Feature
Ø A settable low charge alarm
Ø Display of the charge on the battery as AH and
Remaining time for complete discharge.
Ø Field Setting of the Rated battery capacity in AH.
Ø Field setting of the shunt rating.
Ø Remote Indication of fully charged Battery condition.
Ø Soft calibration – no trimpots.
Ø Optional- RS 485 Modbus link for PC connectivity.
Ø Optional Ethernet connectivity for networking.
Ø Operates directly from the battery being monitored.
Ø User friendly LCD display messages.
Ø Field setting of Battery efficiency.
