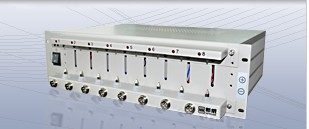

Battery Tester - (5v20ma)

Usage: mainly used for electrode materials research, r&d all types of rechargeable batteries.
it can test capacity, cycle life, charge-discharge efficiency, dcir(direct current internal resistance), energy decrement,etc.
measuring voltage range10mv~5v
measuring current range: 0.04ma-20ma
accuracy0. 2% of range
recording frequency: 1hz/10hz ( 1 or 10 recordings in a second)
channel per each unit: 8 channels( can test 8 batteries at a time)
dimension: 3u19"
protection: power-down data protection
you can also set protection condition parameters as follow
(voltage low limitvoltage upper limitcurrent low limitcurrent upper limitdelay time)
we also have the bts-5v1ma 5v20ma, 5v50ma5v100ma , etc. All of our products are customizable. We can produce the testers with the measuring range of: voltage: 5v-900v, current: 1ma-3000a. .
