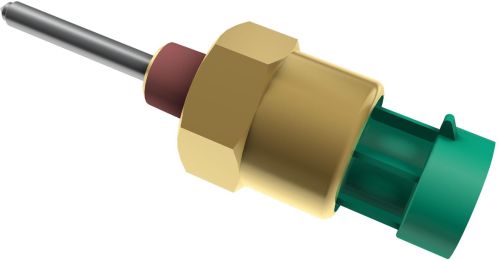

BEDIA CLS10 Series Level Monitoring Sensors

Areas of Application and Advantages
BEDIA CLS 10 stands for special versions of our well-proven CLS 40 series for heavy duty applications.
Currently, the BEDIA CLS 10 series includes a variety of sensors, which are compatible replacement parts for level switches from Cooper Standard and Robert Shaw which are obsolete nowadays – and this in well proven BEDIA quality.
This also includes sensors with 2 complementary CMOS outputs. It should be emphasized that the water sensors with two complementary outputs can be operated with a supply voltage of 4.75 V DC – 32 V DC. Thus, the same sensor can be operated at a supply voltage of nominal voltage 5 V DC and a supply voltage of 7 … 32 V DC.
BEDIA level monitoring sensors are used to monitor the filling levels of liquids. The sensors react when a filling level is exceeded or falls below a limit.
Aqueous mediums like coolants, AdBlue®, fresh water, waste water, bilge water and oil-based liquids like motor oils, hydraulic oils, fuels and brake fluids can be monitored.
Due to their rugged design, high IP protection classes and a working temperature range from -40 °C to +125 °C (-40 °F to +257 °F) the BEDIA monitoring sensors are primarily used in the following areas:
