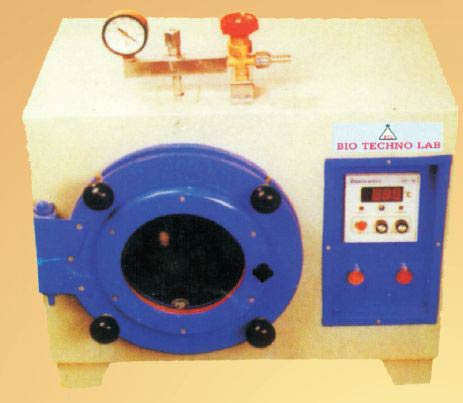

Vacuum Oven, Brand Name : Bio Techno Lab

We bring forth the cutting-edge range of Vacuum Oven with double walled construction. The Vacuum Oven has inner chamber of thick stainless steel 304 quality. The outer chamber of Round & Rectangular Vacuum Oven is made up of mild steel sheet pre-greased and pretreated for rust proofing and is also powder coated. The Vacuum Oven has high-grade glass wool insulation between the chambers to avoid heat loss.

Details :

• Uniform drying under Vacuum
• Temperature ranges from 50°C to 200°C with ± 2°C accuracy
• Precise Vacuum control to 30Hg displayed on Analog guage
• Temperature Controlled by digital Temperature Indicator cum controller
• Vacuum chamber is wrapped with set of high quality heaters for quick and uniform heating
• Door has a thick tempered toughned glass window
• Perfectly sealed with silicon rubber gasket for observation without disturbing thermal condition
• Proper door alignment to ensure excellent Vacuum performance and operators’ safety
• Positive screw to tighten the lid to obtain perfect seal
• Fitted with diaphragm valves and vacuum gauge
• Control panel with Temperature Controller, Switches and indicating lamps provided on the front panel.
• Working chamber 30 x 22.5 Cm
• Suitable for 230V, AC, 50Hz
• Available in rectangular chamber also
• Vacuum control and relief valves located on front of unit for convenient monitoring
