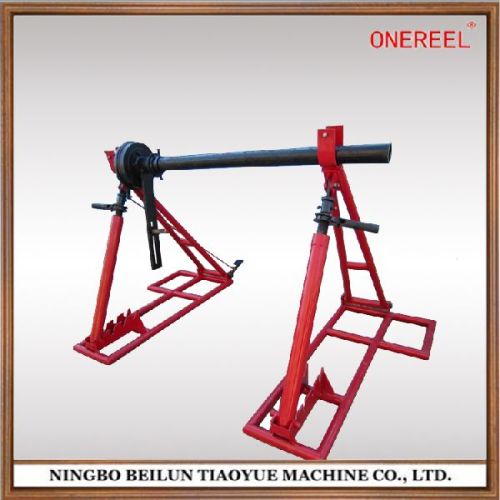

Brake Cable Reel Drum Jack

Cable reel drum jack with brake 20 ton hydraulic cable drum jack cable jack stand for stringing cable   cable stands used for holding or lifting cable drums off the ground so they can be uncoiled for installation of underground power cables, conductors, wire, coaxial cable, etc. The cable drum is moved, rolled or lifted into position and then jacked up using an integrated hydraulic jack or screw jack system. Small units for industrial electricians are lightweight and have wheels for small coils of cable. Heavy utility cable drum stands feature a disc brake system and/or can be powered by a hydraulic motor for coiling and uncoiling. Application it is applicable to the placement of the cable tray, with hydraulic lifting.  features it is applicable to be as the support of large cable reel in laying cables in the city. It is easy to move with the trundles in the bottom. It can be equipped with a braking device, using the foot brake.  technical data  product no. Model type rated load(kn) outside dia of reel(mm) reel weight(t) weight(kg) 80473 sy-15 150 ≤ φ3200 ≤ 15 130 80474 sy-20 200 ≤ φ3600 ≤ 20 150   onereel company insisting on sales of cable jack stands, cable reel handling equipment, greenlee reel stand, heavy duty reel stands, coaxial cable reel holder, spool jacks, greenlee reel jacks, wire pulling jack stands, wire reel stands., etc.
