Brass Casting Micro Tubular Coil Heaters

Listing ID #4349539

  • Insulation Resistance> 100 MΩ
  • Adapter Temperature150oC max
  • H. V. Testing800 V
  • Sheath Temperature750oC max
  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world
View More Details
Send Enquiry
  • Member Since 6 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Power Rating Depending on application
  • Cross Section 1.5MM, 1.8MM
  • Current Leakage < 0.5 mA
  • Length Tolerance ± 2%
  • Power Tolerance ± 5%  -  ± 2% available on request
  • Sheath Material Chrome Nickel Steel and Nickel, Brass
  • Lead Wires Teflon Insulated
  • Insulation Resistance > 100 MΩ
  • Voltage Range Maximum 250 Volts, standard 230 Volts
  • Adapter Temperature 150oC max
  • Heating Element NiCr 80:20
  • Sheath Temperature 750oC max
  • Insulation Material High purity MgO
  • H. V. Testing 800 V

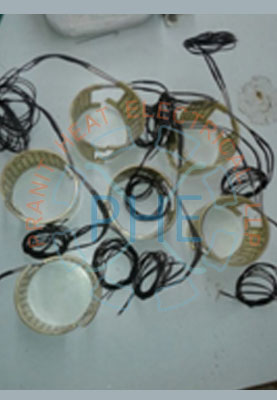

DESCRIPTION : Micro Tubular Coil Heaters are manufactured in two standard diameters, 1.5mm and 1.8mm. These heaters are swaged and compacted to these diameters and fitted into special clamps to tighten over circular parts for heating purpose. Sheath material available are Chrome Nickel Steel and Nickel



APPLICATIONS : 1. Hot Runner Nozzles & Bushings
2. Tube extrusion
3. Pipe Forming



FEATURES : 1. Standard sizes available with various cross section
2. Various watt Dencity option available
3. Designed for even heat profile
3. Precision fit on Hot Runner Nozzles
4. Highly Non-corrosive


Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Company Details close-icon

Established in the year 2011, we, “Pranit Heat Electrical” are a distinguished organization involved in manufacturing and supplying a commendable gamut of Cartridge, Coil and Nozzle Heaters. In this range we are offering Swage Cartridge Heaters, High Density Cartridge Heaters, PTFE Cable Type Cartridge Heaters, Cartridge Heaters, Coil Heaters, Brass Coil Heaters, Hot Runner Coil Heater and Micro Tubular Coil Heaters.
