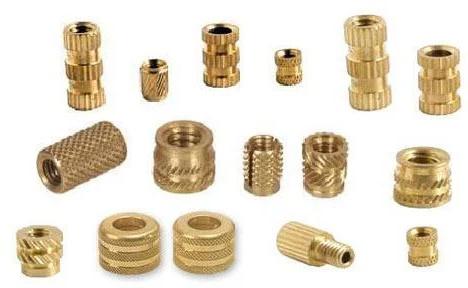

Brass inserts

Prime Industrial Components is a leading Manufacturer, Exporter and Supplier of Brass Inserts based at India (Jamnagar, Gujarat). We are one of the well recognized business entity engaged in manufacturing and supplying high quality of Brass Inserts.

Special features of our Brass Inserts:

• Threads as per International Go & Not Go Standards.
• Deep Groove for maximum Pull out Resistance.
• Inner Diameter (I/D) after Threads with very close tolerance to prevent unnecessary flush to enter into the inserts

Material:

• Free Cutting Brass IS 319 Type (I) or
• Free Cutting Brass as per BS 249 Type (I) or
• High Grade Free Cutting Brass.
• Any Special Brass Material Composition as per customer’s requirement

Threads:

• ISO Metric (MM Threads)
• BA Threads
• BSW Threads (Inches)
• UNC, UNF Threads
• Any threads as per specifications

Length / Size:
Begins from M2 or equivalent threads and up to any size as per Custom Designs and requirements

Knurling Available:

Diamond, Straight, Unidirectional, Both blind and through inserts are available

Typical Application:
Instrumentation, Telecommunications, Electrical Accessories, Electrical junction boxes and other Plastic Cases Assembly.

Finishing and Plating:
Natural, Nickle Plated, Chrome Plated, Tin Plated or any coating as per customer specifications.

Any kind of Brass Inserts can be developed and supplied exactly as per customer’s specification.
