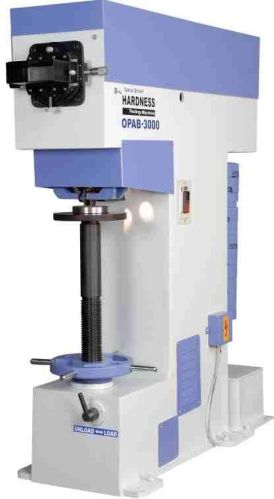

Brinell Hardness Tester

Get Latest Price

MaterialMetal, Plastic
SpecialitiesMotorized System For Load Application/removal,LED Bar Graph For Minor Load Setting,Keyboard Entry For Scale Selection,Hi-Low-OK Indication For Hardness Value,Large Size Bright 7 Segment Display,Centronics Parallel Port For Printer Connection,Error Codes F
Number Of FlowerStandard Optical, Computerised, Touch Screen
Accuracy StandardsIS: 2281-2005, BS: 240
Load Range250 To 3000 Kgf
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

GATHA Products and Services LLP.

Bibwewadi, Pune, Maharashtra

4.5/5

(29)

View Number

Member Since 22 Years
Nature of Business Retailer
GST No. 27AELPD1886J1Z6

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

MaterialMetal, Plastic
Number Of FlowerStandard Optical, Computerised, Touch Screen
SpecialitiesMotorized System For Load Application/removal,LED Bar Graph For Minor Load Setting,Keyboard Entry For Scale Selection,Hi-Low-OK Indication For Hardness Value,Large Size Bright 7 Segment Display,Centronics Parallel Port For Printer Connection,Error Codes F
Load Range250 To 3000 Kgf
Accuracy StandardsIS: 2281-2005, BS: 240

Brinell Hardness Tester standard optical and Computerised version and also in Touch Screen Version . from 250 to 3000 Kgf Load in various Combinations.

The machine accuracies confirm to IS: 2281-2005 & BS: 240

Salient Features

Motorized system for application and removal of major load
Minor load setting by LED bar graph
Keyboard entry for scale selection
Hi-Low-OK indication for hardness value
Easy to read, large size extra bright 7 segment display
Centronics parallel port for connecting Dot Matrix Pinter
Sufficient error codes for smooth functioning of machines
Serial interface (Optional)
Least Count 01 for Rockwell and 0.2 for Rockwell Superficial
Dwell Time 1 to 99 Seconds
. Scale Displayed A,B,C,D,E,F,G,H,K,L,M,N,P,R,S,V in Nos. 1 to 15 Resp. and 15N,30N,45N,15 T,30T,45T in Nos. 1 to 21 Resp. for Superficial
Indenter is guided in linear bearing facilitates to test small jobs

Technical Specifications

Model	Test Loads Kgf	Initial Loads Kgs	Max Test Height mm	Depth of Thorat mm	Over All Dimensions mm
ROCKWELL(Digital)	60100.15	10	215(295)	132(148)	430 x 180 x 635 (580x270x915)
ROCKWELL CUM BRINELL (Digital)	60,100,150 and 187.5 ,250 for Brinell	10	295	148	475 x220x865 (580x270x915)
ROCKWELL AND ROCKWELL SUPERFICIAL (Digital)	60,100,150 and 15,30,45 for Rockwell Superficial	10 for Rockwell and 3 for Superficial	295	148	475 x220x865 (580x270x915)
