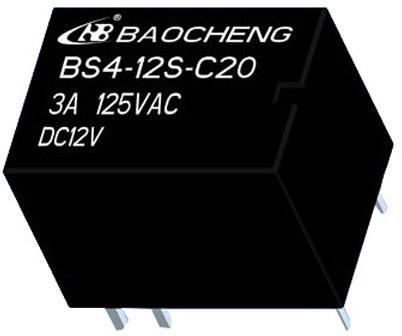

relay type:Â bs4 relay
baocheng export excellent power relay, telecom relays and automotive relays.
Â
· 5a switching capabilityÂ
· standard pcb layout
· dielectric strength between coil and contact 1kv
· no,nc,no&nc contact form available
· ul insulation grade：class f
· environmental friendly productÂ
· outline dimension: 15.5 x 11 x 11.5mm
power relays, automotive relays, latching relays manufacturer & supplier
Â
contact ratings | |
contact form: | 1a, 1b, 1c |
contact material: | agni |
contact load capacity: | 1a,2a,3a,5a/125vac,30vdc |
max. switching current: | 5a |
max. switching power: | 625va/150w |
mechanical endurance: | 1*107ops |
electrical endurance: | 1*105ops |
Â
technical ratings | |
insulation resistance: | 100mω |
dielectric strength(between coil&contact): | 1000vac |
operate time (max.): | 10ms |
release time (max.): | 5ms |
ambient temperature: | -30℃ ~ 70℃ |
terminal type: | dip |
Â
Â
coil ratings | |
nominal voltage | (3-24)vdc |
nominal coil power | 0.2w,0.36w,0.45w |
.
