Burst Generator

The EFT-Burst test checks the immunity of the product against high frequency, low energy transient bursts due to switching events in the near environment. For examples, industry measurements or control equipments are always use the relays or switches, in addition, some components with inductive load, such as the LED lamp ballast or some appliance with small power will generate interference when switching these parts, and electronic products or equipments probably cannot be normally work due to these interference. Therefore, electronic products are tested for EFT immunity to insure their continued reliable operation if subjected to realistic levels of fast transients.

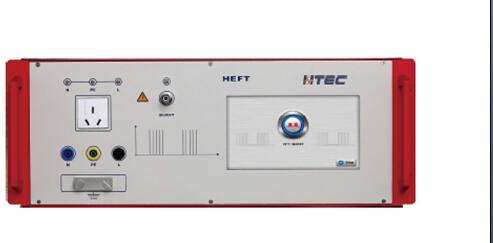

HEFT immunity test system is a reliable & economic solution with a built-in couplingdecoupling network for single phase or three phase mains supply lines and a HV terminal to connect a capacitive clamp. HEFT can quickly and completely perform auto-test according to IEC standards. Varied options and accessories are available, including CDN (Max current up to 100A), capacitive coupling clamp and burst calibration kit.
Features & Benefits
5.0kV and 7.0kV output voltage
Max repetition frequency 1MHz
Multiple burst modes: normalcontinuousreal
7 inch touch screen, easy to operate, good-looking appearance
Built in single & three phase coupling and decoupling network
Max voltage 690V, Max current 100A
External mobile capacitive coupling clamp
According to latest IEC standards
Standards
IEC 61000-4-4
IEC EN 61000-6-2
IECEN 61000-6-1
GBT 17626.4
IECEN 61850-3
IECEN 61326
