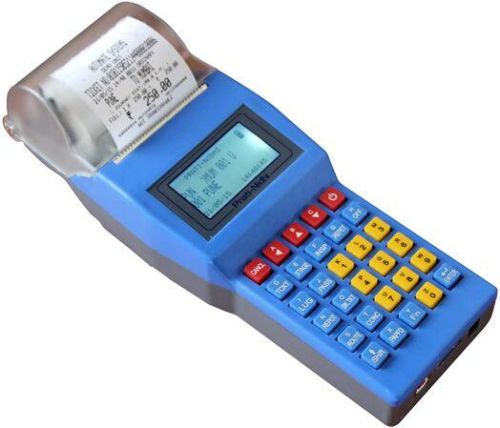

Bus Ticketing Machine

• Ease of operation for the conductor.
• Detection of Physical Ticket Printing.
• Logo Printing Support.
• Local Language Support.
• Multiple Reports on the Device
• Strong Inspection Menu and Reporting.
• Fastest Updating of Route Data
• 10000 Tickets Storage
• 999 Route Storage
• Configurable Concession System

Hardware

• Powerfull Battery for more than 2000 Ticket Printing
• Strong ABS Cabinate
• Audio Alarm for Flap Open Condition
• Fool Proof Ticket Printing

• Management Information System.
• Stage -Wise
• Conductor Wise
• Ticket Domenation
• Trip _Wise
• Over-All Collection
• Ticket Details

1. Mechanical : 245 x 70 x 88 mm in ABS plastic enclosure
2. Processor: 32 bit ARM Contex M4 Processor @ 100MHz
3. Memory: 4 MB non-volatile DATAFLASH (Option 8 MB / 16 MB)
4. RTC: Build in with internal Lithium Battery Back-up
5. Main Battery: High Capacity Li-ION rechargeble battery pack. 7.4V, 2.2 AH
6. Charger: External Travel charger with auto cut-off facility and Charging / Full inductor
7. Display: 128 x 64 Graphics display with backlight.
8. Printer: Thermal with following specs
   • Thermo-Sensitive mother board of printing.
   • Easy loading owing to removable platen technology.
   • 384 dots/lines
   • 60mm/sec max speed
9. Keybord: 30 keys elastomeric rubber keypad with GOLD plated contacts on board.
10. Optional: GPRS connectivity facility and/or RFID Card Reader

RIFD : Support ISO 14443 A&B, Mifare Classic, Mifare Ultraligh
GPRS : GSM Quad Band GPRS Support All India Operators.
