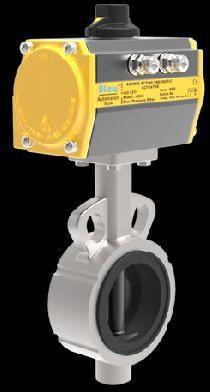

Butterfly Valve

Get Latest Price

Sold By : Uflow Automation

Send Inquiry

Product Specifications

MaterialCast Iron, WCB, SS304, SS316
Disc MaterialSGI, CF8, CF8M
End ConnectionWafer - API 609 (CAT - A)
SpecialitiesBi-directional zero leakage butterfly valve. ISO Pad for mounting, Gear Operator /Actuator. Extremely small play between the stem and disc due to ‘Double D’ drive. Accurate dual stem sealing prevents leakage.
Pressure RangePN10, PN16
Suitable toASMI B16.5 150#, BS10 TABLE : E, F, H
Stem MaterialSS 410, SS 304, SS 316
Body Liner / Seat MaterialNBR, EPDM
Leakage Class100% Tightness at fully differential pressure
RangeDN40 - DN300
StandardAPI 609, BS 5155, ISO 5211, API 598, ASME B16.5
