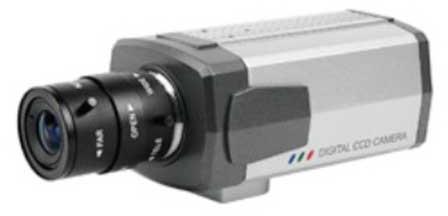

C Mount Camera

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We bring to you, C Mount Camera. C-Mount lenses are available from 4mm to 100mm and one can change the lens of the camera. A 4mm lens provides facial detail and a 70-degree angle of view focused up to about 35 ft. A high millimeter lens provides further distance, but narrows the field of view. The CS-mount lenses have a flange back distance of 12.5mm, which is the distance from the beginning of the lens mount to the focal plane. Features High efficiencyLatest technologyHigh definition picturesHigh durability

View More Details

Send Enquiry

Product Details

Specifications

Model	PC-403SHQ1
Image Sensor	1/3"SONY
Horizontal Resolution	520 TV Lines
Pixels	PAL:795 (H) x 596(V) NTSC :811 (H)x508 (V)
TV System	PAL/NTSC
Lens	C/CS Lens
Usable Illumination	1.0Lux/F2.0
Scanning System	PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec
Electronic Shutter Time	Auto: PAL 1/50-1/100,000Sec;NTSC 1/60-1/100,000Sec
Operation Temperature	-10^oC ~ +50^oC RH95% Max
Storage Temperature	-20^oC ~ +60^oC RH95% Max
White Balance	Auto
Power Source	DC12V 400mA
Dimension	101x60x49mm
Weight	230g
