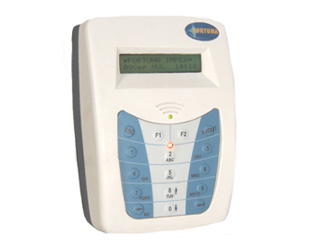

O-Zone is a sleek, trendy and rugged ABS molded Attendance & Access Control System designed for corporate offices. The terminal records IN/OUT time as well as breaks with a casual show of Contact....
O-Zone is a sleek, trendy and rugged ABS molded Attendance & Access Control System designed for corporate offices. The terminal records IN/OUT time as well as breaks with a casual show of Contact less Card.
Â
It is designed to read MIFARE(ISO 14443 Type A)/iClass(ISO 15693) cards or 125 KHz RF(HID or EM) cards.
Â
O-Zone can be connected to a door lock/turnstile which is opened only on usage of valid Card, deterring proxy punching and barring unwanted visitors. A request-to-Exit Switch or Smart Card Reader for Exit may also be interfaced. It is provided with a suitable termination board for easy of connection & installation.
Â
The data is downloaded in online / offline mode to a PC for Time Office related Reports and data required for payroll.
Â
A Pallette of Features :
Â
Shift : Upto 16 shift Times and flexible Individual Shift Allocation to  each employee
Holidays : Upto 30 Holiday Dates and 1 weekly-off definable with separate Holiday Card Holder Database
Mode of Operation : Individual Mode of operation for Attendance such as ID or ID + PIN (useful for Access control)
Legacy : User Definable Block to Read ID number and Name from MIFARE Smart Card with user configurable Key AÂ
& Key B
Dates : Definable Birthday for wishing Birthday & Validity Date to automatically deny Access after expiry date
Employee Masking : Employee can be masked temporarily in case of suspension or loss of card
Message Display : Global or Individual message display against card show, User definable Sign-on Message
In/Out Mode : Programmable IN/OUT based on time of day and toggle the Mode using keyboard
Advanced File Management : User Definable transaction file structure to suit any Legacy Software or dumpingÂ
data to database tables
Scheduler : Auto Scheduler to download data multiple times in a day or online Mode of operation
Connectivity : WAN/WiFi/Bluetooth/Ethernet/RS232C/RS485/ZigBee(2.4 Ghz Radio Modem) connectivityÂ
option using suitable hardware
Extended Hardware : MODEM interface for downloading data using telephone lines with Multi siteÂ
support, EPABX Support
Â
Hardware Features:
Â
CPU: High Speed 16 bit microcontroller with Real time Clock and battery, Watch-dog- timer
Reader: Built-in MIFARE Reader (optional 125 KHz RF Reader)and provision for additional external Reader on Wiegand I/F
Communication Port: Field configurable RS 232C I RS 485 I Ethernet or 2.4GHz Radio Modem using suitable hardware
Keyboard: Built-in 16 key sealed Membrane keyboard for PIN & Function keys for parameter setting, Smart Card initialization etc.
Relay O/P : Potential free contact available as physical Access Control O/P with Lock Feedback and Request-to-Exit Switch I/P
Display: 16 Character, 2 line Liquid Crystal Display(LCD) for Displaying Real-time-clock, ID No/Emp. No, Name, Message
Audio: Built-in Audio chip and speaker for playing 12 prefixed messages (e.g. Welcome, Happy B"day etc.) an a Buzzer
Auxiliary Port: RS 232C port being brought out for interface to Printer, Larger Display Panel, Computer, Reader etc.
Card Holder: Upto 3400 Valid Card Holder ID Table with Name, Birthday, Employee ID, Validity Date, PIN, Shift and Mode
Event Buffer: Last 20,000 Records being saved as circular buffer in Battery backed- up RAM with Memory Dump feature
SMPS: Universal SMPS with 90V-270VAC range and optional UPS with 2 hours battery back-up
