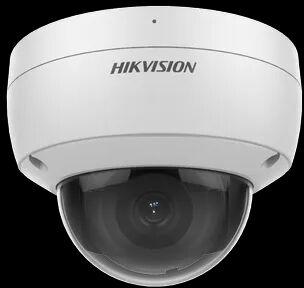

CCTV Dome Camera, Camera Resolution : 2 MP

₹ 12,000 / Piece

MOQ10 Piece
Camera Resolution2MP
IR RangeUp to 30 m
Audio Bit Rate-S: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
Simultaneous Live ViewUp to 6 channels
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location All over the world

Product Details

Camera Resolution2MP
IR RangeUp to 30 m
Audio Compression-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
ApertureF1.4
Shutter Speed1/3 s to 1/100,000 s
Max. Resolution1920 x 1080 pixel
Model Name/NumberDS-2CD2126G2-I(SU)
IP RatingIP67
H.264+Main stream supports
Lens MountM12
Day & NightIR cut filter
Scalable Video Coding (SVC)H.265 and H.264 encoding
User/HostUp to 32 users. 3 user levels: administrator, operator and user
Viewing Angle90 Degree
ClientiVMS-4200, Hik-Connect, Hik-Central
Sub-Stream50 Hz: 25 fps (640 x 480, 640 x 360)
SNR52 dB
Video CompressionMain stream: H.265/H.264/H.265+/H.264+
Usage/ApplicationOutdoor Use
Focal Length & FOV2.8 mm, horizontal FOV 107 Degree, vertical FOV 57 Degree, diagonal FOV 129 Degree
Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
DORI2.8 mm: D: 44.3 m, O: 17.6 m, R: 8.9 m, I: 4.4 m
Third Stream50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
Audio Bit Rate-S: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4
Video Bit Rate32 Kbps to 8 Mbps
Region Of Interest (ROI)1 fixed region for main stream and sub-stream
IR Wavelength850 nm
H.264 TypeBaseline Profile/Main Profile/High Profile
Audio Sampling Rate-S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Main Stream50 Hz: 25 fps (1920 x 1080, 1280 x 720)
Wide Dynamic Range120 dB
Simultaneous Live ViewUp to 6 channels
Min. IlluminationColor: 0.002 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
